high-volume production · colour
A high-volume colour press for commercial print, combining a broad media range with configurable inline feeding and finishing.
The Pro C9500 combines high-volume colour output with a broad media range. Explore the applications, quality controls and finishing choices that help you move suitable work into a digital production workflow.
From catalogues and photo books to extended-format collateral, plan the press around the finished piece.
explore applications
Combine detailed imaging, registration and suitable automation for repeatable commercial work.
explore colour & quality
Match engine speed, processing capacity and paper handling to the shape of your production day.
explore productivity
Bring printing and finishing into one considered production route.
explore finishingCheck the technical details and equipment options for your workflow.
keep exploring
light production · colour
Bring professional colour production into a compact footprint. The Pro C5400S and C5410S combine flexible media handling, scanning and optional Fiery controllers for in-house print rooms and commercial short runs. Compare each model’s speed, feeding and finishing options below.
production press · colour
Turn the optional fifth colour station into a creative advantage. The Pro C7500 combines print enhancement beyond CMYK with broad media handling and automated production workflows for premium direct mail, packaging applications and distinctive marketing print.
production press · monochrome
Dedicated print and multifunction configurations for high-volume monochrome documents, manuals and book production.
From catalogues and photo books to extended-format collateral, plan the press around the finished piece.
Combine image-rich pages with selected heavier stocks for covers, counter cards and packaging applications. Test the particular substrate and its planned crease or fold; a supported weight is not a guarantee that every material will suit the job.
Digital production lets you change offers and imagery without producing every version as a separate static run. Agree the data fields, proofing process and print sequence before moving personalised work into production.

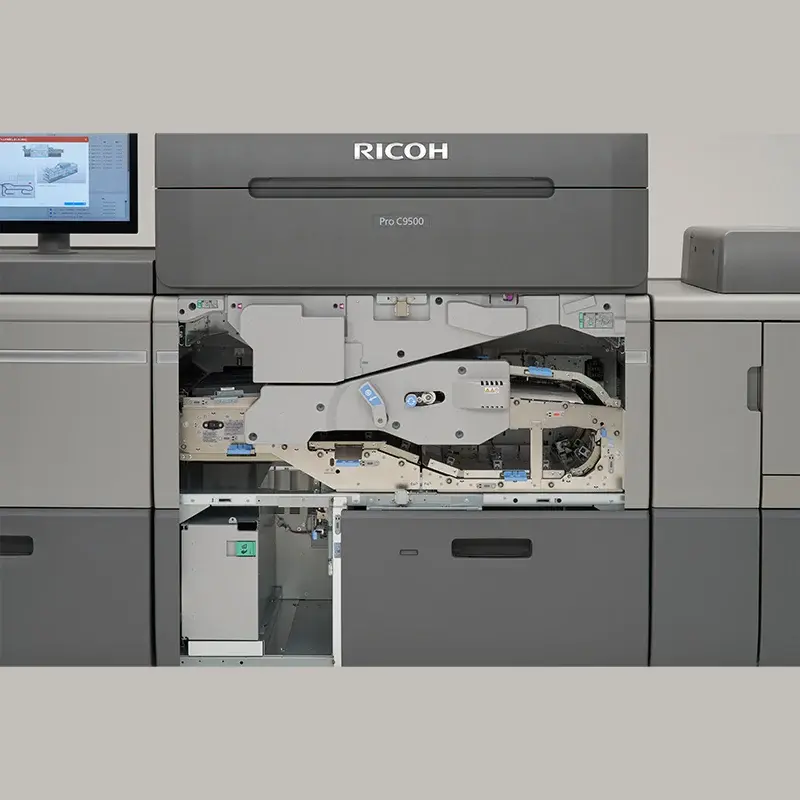

Ricoh Australia lists sheets up to 330 × 1,260 mm with suitable options, and media from 40 to 470 g/m². Long-sheet, duplex and tray limits need to be considered together for fold-outs and extended covers.
Combine detailed imaging, registration and suitable automation for repeatable commercial work.
The Australian specification lists 2,400 × 4,800 dpi output, with an engine resolution of 1,200 × 4,800 dpi. Registration control helps align duplex work where trim edges, borders and page placement are especially visible.
The optional Auto Colour Diagnosis Unit supports colour and registration adjustment during production. Configure it alongside the selected controller and establish how operators will check and handle exceptions.
Evaluate colour on the chosen stock and under agreed viewing conditions. Include lamination, coating or other downstream processes in the approval sample when they form part of the finished job.
Match engine speed, processing capacity and paper handling to the shape of your production day.
The Australian configuration runs at 115 A4 pages per minute, or 135 ppm with the optional Productivity Upgrade Unit Type S15. Feeding, media, job processing and finishing also influence completed-job throughput.

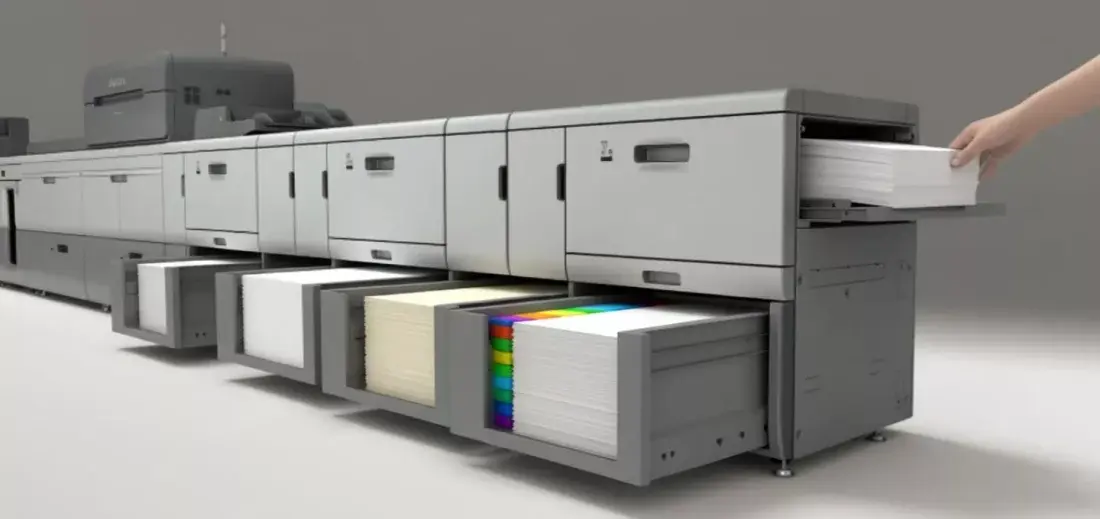

Ricoh Australia lists a maximum input of 21,900 sheets with options. Choose the feeder combination for the stocks you use, rather than assuming every tray accepts the same paper range.

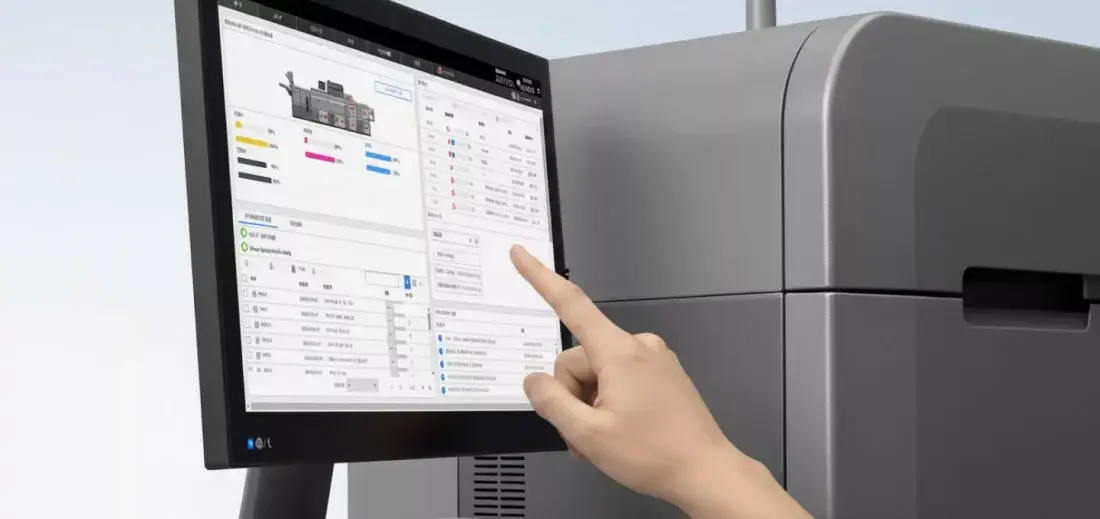

Stored paper settings give operators a starting point for repeat work. Combine these with controller job presets and an agreed check sheet so a recurring order can be prepared consistently.
Bring printing and finishing into one considered production route.

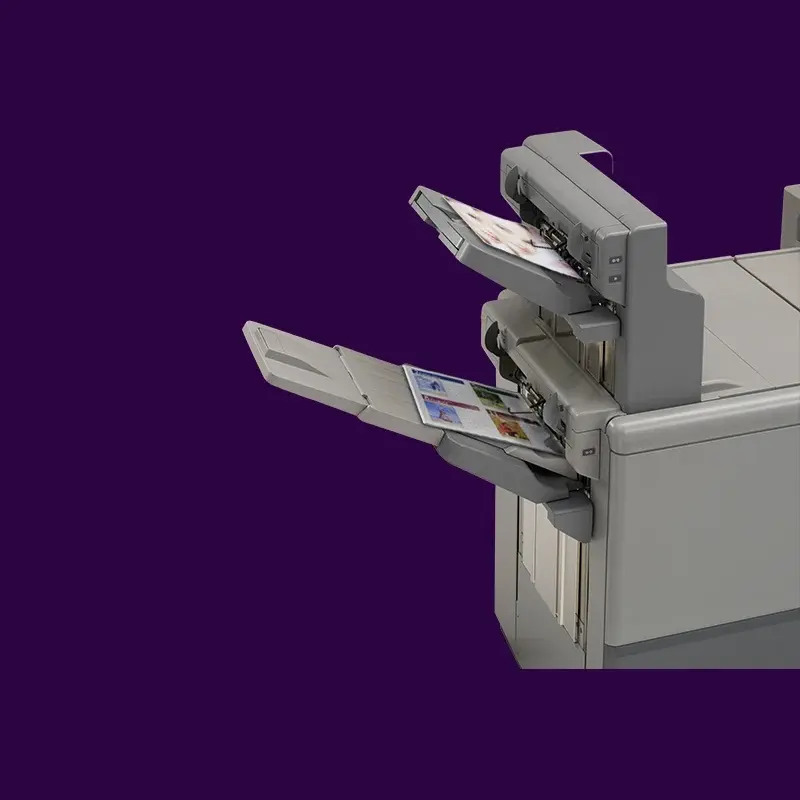

Use compatible inline options for booklets, folded communications, punching and stacking. Match the equipment to the application, including the feed direction and finished size.

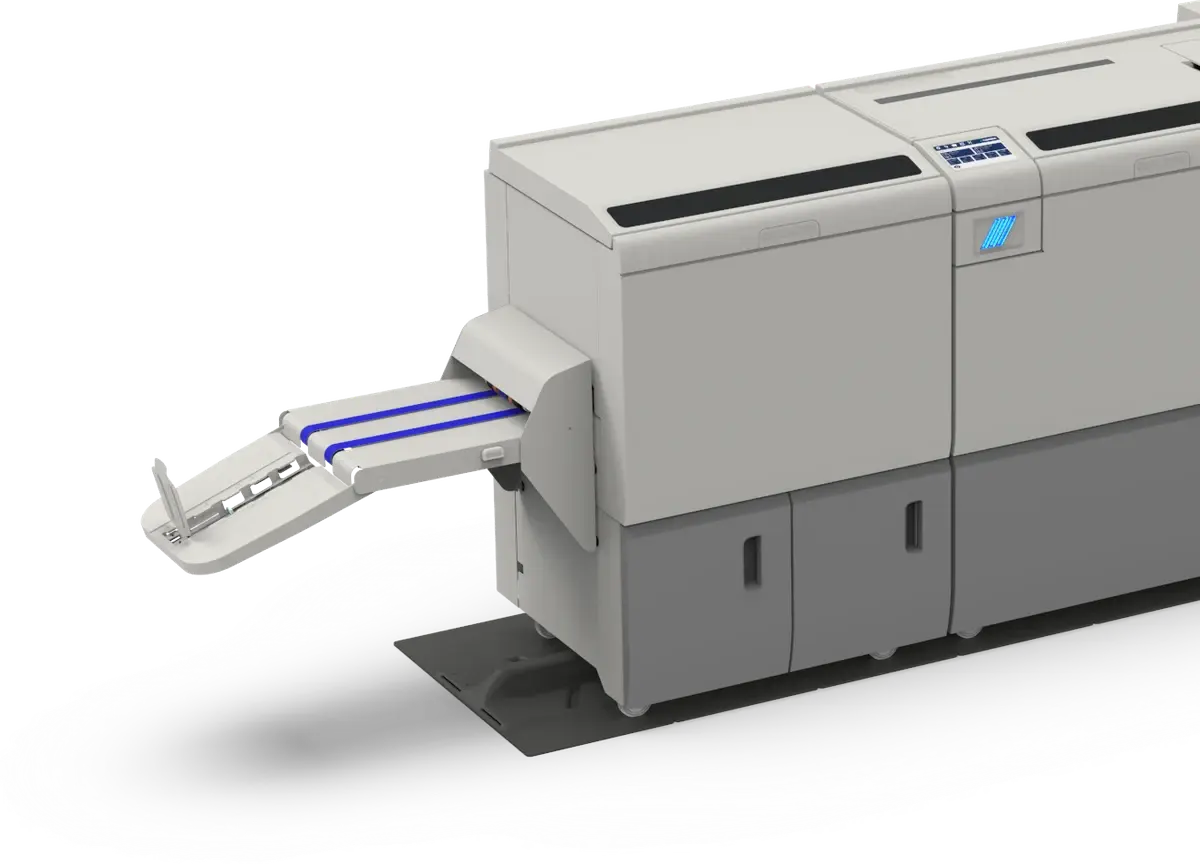

Plockmatic lists the Pro C9500 family for its PBM5000 systems. The chosen booklet maker, bridge/interface and press configuration must be specified together; not every finishing option can be combined in one line.

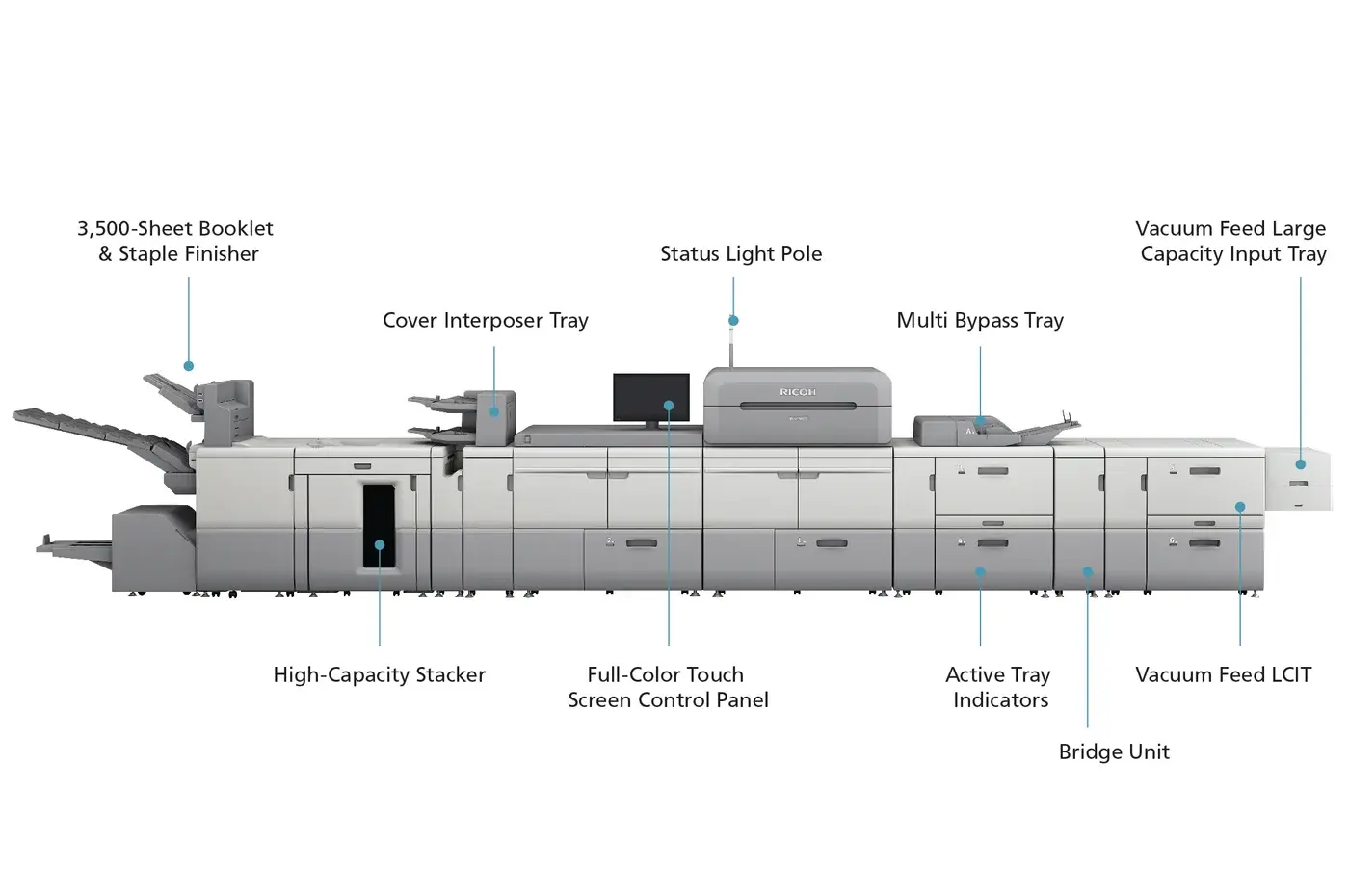

Review the key figures and the listed equipment options for this system.
