01
Quick start
First print speed of 6 seconds.
A4 black & white multifunction printer

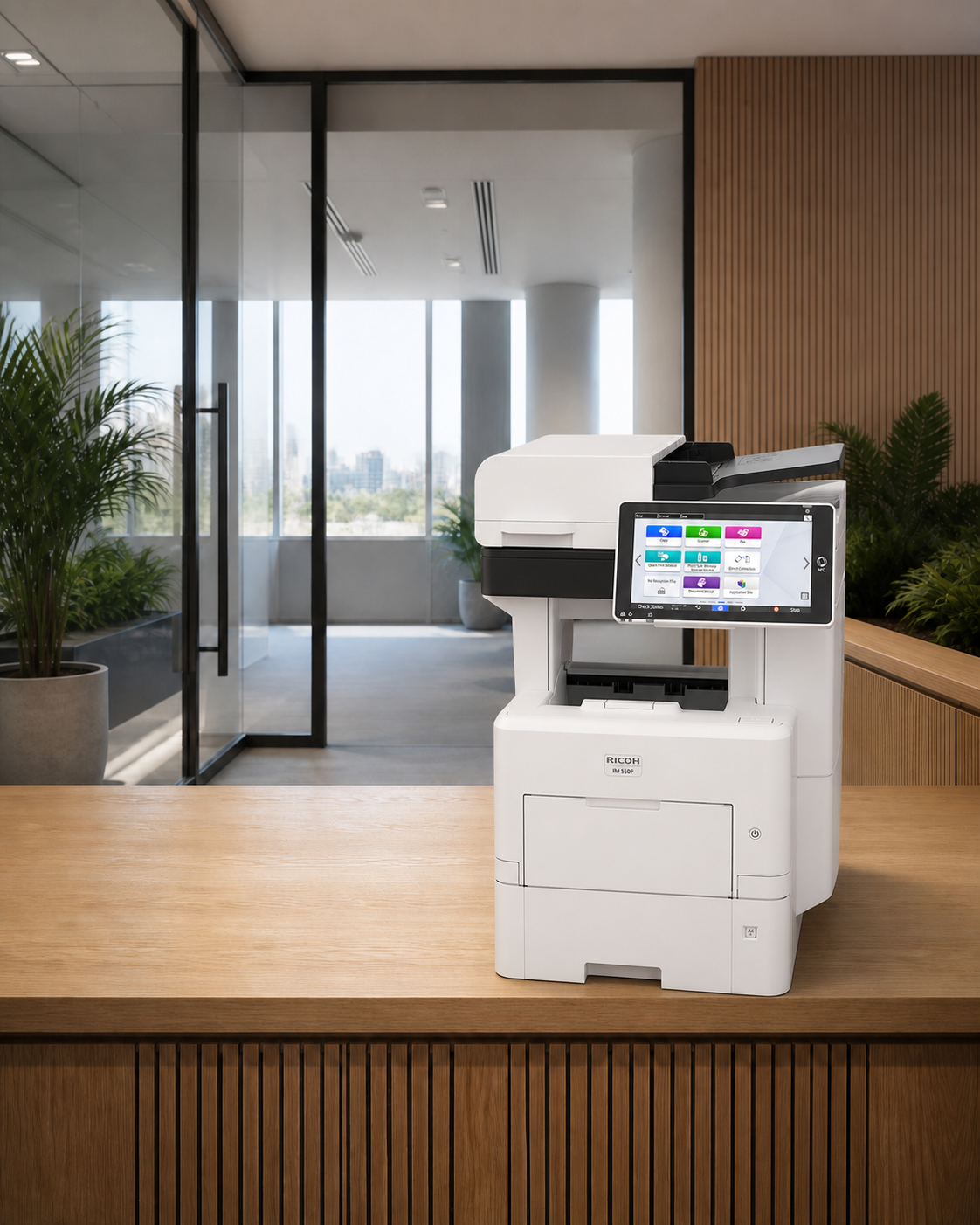

Ricoh IM 550F
Powerful A4 mono multifunction for fast-moving workgroups
The IM 550F delivers 55 ppm mono multifunction performance where an A3 footprint is unnecessary. A 10.1-inch panel, single-pass scanning up to 100 ipm and optional OCR or wireless connectivity support fast, information-heavy workgroups.
- Copy, print, scan, fax
- Prints up to 55 ppm
- 10.1” Smart Operation Panel
- RICOH Smart Integration
output
Black & white
paper size
A4
device type
Multifunction
print speed
55 ppm
best suited to
fast A4 multifunction without the A3 footprint
02
Respond with information faster
Check settings, add widgets, toggle between tasks with incredible speed with responsive 10.1” Smart Operation Panel.
03
Affordable print, copy, scan and fax
Low energy consumption and high yield consumables keep it cost-effective.
04
Scan and print quickly
Scan up to *100 black and white impressions per minute with the standard single-pass document feeder. *based on mono duplex @ 300 dpi.
the ion difference
the machine is only one part of the solution
We help match the device to your actual print volumes, workflows and security needs, then support it with proactive service, automatic toner fulfilment and one local point of contact.
product guide
review the detailed brochure
Review configuration options and feature details relevant to the Ricoh IM 550F.
download brochuretechnical detail
specifications
The full specification set is included on the page so your team can compare devices without searching through separate documents.
Configuration+
- Functions
- Copy, print, scan, fax
- Colour
- No
- Storage
- 320 GB, 2.5-inch
- Memory - standard
- 2 GB
- Operation panel
- 10.1" Smart Operation Panel (G2.5)
Physical dimensions+
- Physical dimensions (WxDxH)—mainframe
- 480 x 539 x 644 mm
- Weight—mainframe
- 29 kg or less
Media handling+
- Standard input capacity (sheets)
- 600
- Maximum input capacity (sheets)
- 2,600
- Standard output capacity (sheets)
- 500
- Maximum output capacity (sheets)
- 500
- Paper input configuration - standard
- 500-sheet paper tray, 100-sheet bypass tray, duplex unit, 100-sheet SPDF
- Paper output configuration - standard
- 500-sheet face-down output tray
- Supported media
- Standard tray, duplex unit Plain Paper 1–2, Middle Thick Paper, Thick Paper 11, Recycled Paper, Coloured Paper, Special Paper 1–3, Letterhead, Pre-printed Paper, Bond Paper Bypass tray Thin Paper, Plain Paper 1–2, Middle Thick Paper, Thick Paper 1–3, Recycled Paper, Coloured Paper, Special Paper 1–3, Letterhead, Pre-printed Paper, Bond Paper, OHP, Label Paper, Envelope Paper Feed Unit PB1160 Plain Paper 1–2, Middle Thick Paper, Thick Paper 11, Recycled Paper, Coloured Paper, Special paper 1–3, Letterhead, Pre-printed Paper, Bond Paper, Envelope 1—Allowed weights for Trays 1–5 and duplex printing are 106–120 g/m2
- Maximum paper size
- A4
- Media weight (g/m2)
- 60–220
Connectivity+
- Interfaces - standard
- Mainframe 10Base-T/100Base-Tx/1000Base-T (Gigabit Ethernet) USB Host USB Device 2.0 Operation panel Wireless LAN (IEEE 802.11 ac/a/b/g/n) SD Card Slot (1 slot/support SDHC Memory Card) USB Host for USB Memory (USB Host Type A) USB Host for IC Card R/W (NFC) (USB Host Type miniB) NFC Tag built-in Bluetooth
- Interfaces - optional
- IEEE 1284 Wireless LAN (IEEE 802.11a/b/g/n) Device Server Type M37 (additional NIC port)
- Network protocols - standard
- TCP/IP (IPv4, IPv6)
Copy features+
- Copy speed
- 55 cpm
- First copy time
- 7 seconds or less
- Copy resolution
- Platen 600 x 600 dpi SPDF—simplex 600 x 300 dpi 600 x 600 dpi SPDF—duplex Front 600 x 600 dpi / Back 600 x 600 dpi (colour, black and white) Front 600 x 300 dpi / Back 600 x 300 dpi (black and white) Front 600 x 300 dpi / 300 x 600 dpi (colour)
- Zoom range
- 25%–400% in 1% steps
- Enlargement ratios
- 141%, 200%
- Reduction ratios
- 93%, 71%, 50%
- Duplex copy
- Standard
- ID card copy
- Supported
- User codes
- 1,000 user codes, 8 digits per code
Print features+
- Print speed black and white
- 55 ppm
- First print time
- 6 seconds or less
- Print resolution
- 1,200 x 1,200 dpi (1-bit)
- Page description languages (PDLs)
- Standard PCL 5e, PCL 6 (XL), PostScript3 emulation, PDF Direct emulation Optional Adobe PostScript 3, Adobe PDF Direct, IPDS, XPS Note: IPDS unit will be available after product launch.
- Printer drivers
- Standard PCL 5e, PCL 6, PostScript3 Optional Adobe PostScript 3
- Duplex printing
- Standard
- Mobile printing
- AirPrint, Mopria®, RICOH Smart Device Connector
- Print from USB/SD
- Supported
Scan features+
- Scan speed
- Black and white 60 ipm—simplex 100 ipm—duplex Colour 40 ipm—simplex 62 ipm—duplex
- Scan methods
- Scan to USB/SD, Scan to email, Scan to folder (SMB, FTP), Scan to URL, Scan to PDF/A, Scan to digitally signed PDF, Scan to searchable PDF (embedded)
- Colour scanning
- Standard
- Scan resolution
- 100 x 100 dpi, 200 x 200 dpi (default), 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi
- Scan to file types
- Singe-page TIFF/JPEG, PDF, High Compression PDF, Secure PDF, Digital Signature PDF Multi-page TIFF, PDF, High Compression PDF, Secure PDF, Digital Signature PDF
- Scan to email
- Protocols SMTP (mail server) gateway, TCP/IP Authentication SMTP authentication, POP before SMTP authentication Scan resolution 100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi Scan to email file types Single-page TIFF, JPEG, PDF, high-compression PDF, secure PDF, digitally signed PDF, PDF/A Multi-page TIFF, PDF, high-compression PDF, secure PDF, digitally signed PDF, PDF/A, searchable PDF
- Scan to folder
- Protocols SMB, FTP Security Client folder login (login name and password), encryption of login name and password during transmission Resolution 100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi Search for client folders SMB—browsing directly to the designated folder FTP—by client folder name Scan to folder file types Single-page TIFF, JPEG, PDF, high-compression PDF, secure PDF, digitally-signed PDF Multi-page TIFF, PDF, high-compression PDF, secure PDF, digitally-signed PDF
- TWAIN scanning
- Scan mode Standard, Photo, OCR, Filing Scan resolution Black and white 100–1,200 dpi—1,200 dpi scanning is supported only with A6 or smaller paper size Colour 100–600 dpi
Fax features+
- Fax types
- G3 fax (1 line), Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax
- Fax circuit
- PSTN, PBX
- Fax compatibilty
- ITU-T (CCITT), G3
- Fax modem speed
- 33.6 Kbps–2,400 bps–—G3, standard with Automatic Shift Down
- Fax compression methods
- MH, MR, MMR, JBIG
- Fax resolution
- Standard Mode 8 x 3.85 lines/mm, 200 x 100 dpi Detail Mode 8 x 7.7 lines/mm, 200 x 200 dpi Super Fine Mode (optional ) 16 x 15.4 lines/mm, 400 x 400 dpi
- G3 fax transmission speed
- Approx. 2 seconds—200 x 100 dpi, JBIG, ITU-T No. 1 chart, TTI off, memory transmission Approx. 3 seconds—200 x 100 dpi, MMR, ITU-T No. 1 chart, TTI off, memory transmission
- Fax SAF memory capacity
- 4 MB (approximately 320 pages)—standard 60 MB (approximately 4,800 pages)—with optional SAF memory
- Fax memory backup
- 1 hour
- Quick dials
- 2,000 numbers
Security features+
- Data Overwrite Security System (DOSS) - Standard
- Yes
- Data Overwrite Security System (DOSS) - Optional
- Type M19—for customers who require their devices to comply with ISO 15408 Common Criteria certification
- Encryption
- HDD encryption Authentication password S/MIME
- Authentication
- 802.1x wired authentication IEEE 802.11i security (WPA) Quota setting/Account limit User authentication—Windows and LDAP via Kerberos, basic User code authentication—8 digits, 1,000 user codes WiFi Protected Setup (WPS) support
Supported operating environments+
- Windows
- Windows 7 Windows Server 2008 Windows Server 2008 R2 Windows 8.1 Windows Server 2012 Windows Server 2012 R2 Windows 10 Windows Server 2016 Windows Server 2019
- Macintosh
- OS X Native v10.11 or later—PostScript 3 only
- Unix
- Sun Solaris—10 HP-UX—11.x, 11iv2, 11iv3 Red Hat Linux—Enterprise v4, v5, v6 SCO OpenServer—5.0.7, 6.0 IBM AIX—6.1, 7.1, 7.2
- SAP
- Environment—R/3, R/4 SAP R/3 Device Type—supported Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5 interleaved/Industrial/Matrix, MSI, USPS, UPC/EAN OCR fonts—OCR A, OCR B
Software and solutions+
- Standard
- @Remote Embedded Web Image Monitor
- Optional
- @Remote Office @Remote Enterprise Pro @Remote Connector NX Card Authentication Package Device Software Manager Enhanced Locked Print NX GlobalScan NX Java SDK Printer Driver Packager NX RICOH Streamline NX
- Mobile apps
- RICOH Smart Device Connector
Environmental features+
- Power source
- 220–240 V, 50/60 Hz
- Power consumption
- 1,300 W or less—maximum operating power (nominal) 1,500 W or less—maximum operating power (guaranteed) 710 W—printing, operating (nominal) 88.2 W or less—Ready Mode (nominal) 3.1 W—Energy Saver Mode (Sleep Mode) (nominal)
- Typical Electricity Consumption (TEC)
- 3.3 kWh
- Warm-up time
- 25.4 seconds or less
- Recovery time
- 10 seconds or less—from Ready Mode 25 seconds or less—from Energy Saver Mode (Sleep Mode)
- Green labels
- Blue Angel Mark (BAM), Energy Efficiency Labelling Scheme (Hong Kong), Thai Green Label
- Other environmental features
- Eco-friendly indicator screen
Specifications are based on current Ricoh Australia product information and may change. Optional features can require additional hardware, software or configuration.
compare nearby models
related ricoh devices
common questions
about theIM 550F
Quick answers about the device, where it fits and how ion can support it.
Black & whiteA4Multifunction55 ppm
What type of device is the IM 550F?+
The IM 550F is an A4 black & white multifunction device that prints at up to 55 pages per minute. Its core functions are copy, print, scan, fax.
Who is the IM 550F best suited to?+
Busy workgroups with sustained daily print demand that need A4 printing, copying and scanning in one supported device, especially where powerful A4 mono multifunction for fast-moving workgroups matters.
Can ion supply and support the IM 550F?+
ion can assess your print volumes, workflows and security needs, configure the right IM 550F solution, and support it through a managed print arrangement with local service and automatic toner fulfilment.
