A4 black & white multifunction printer

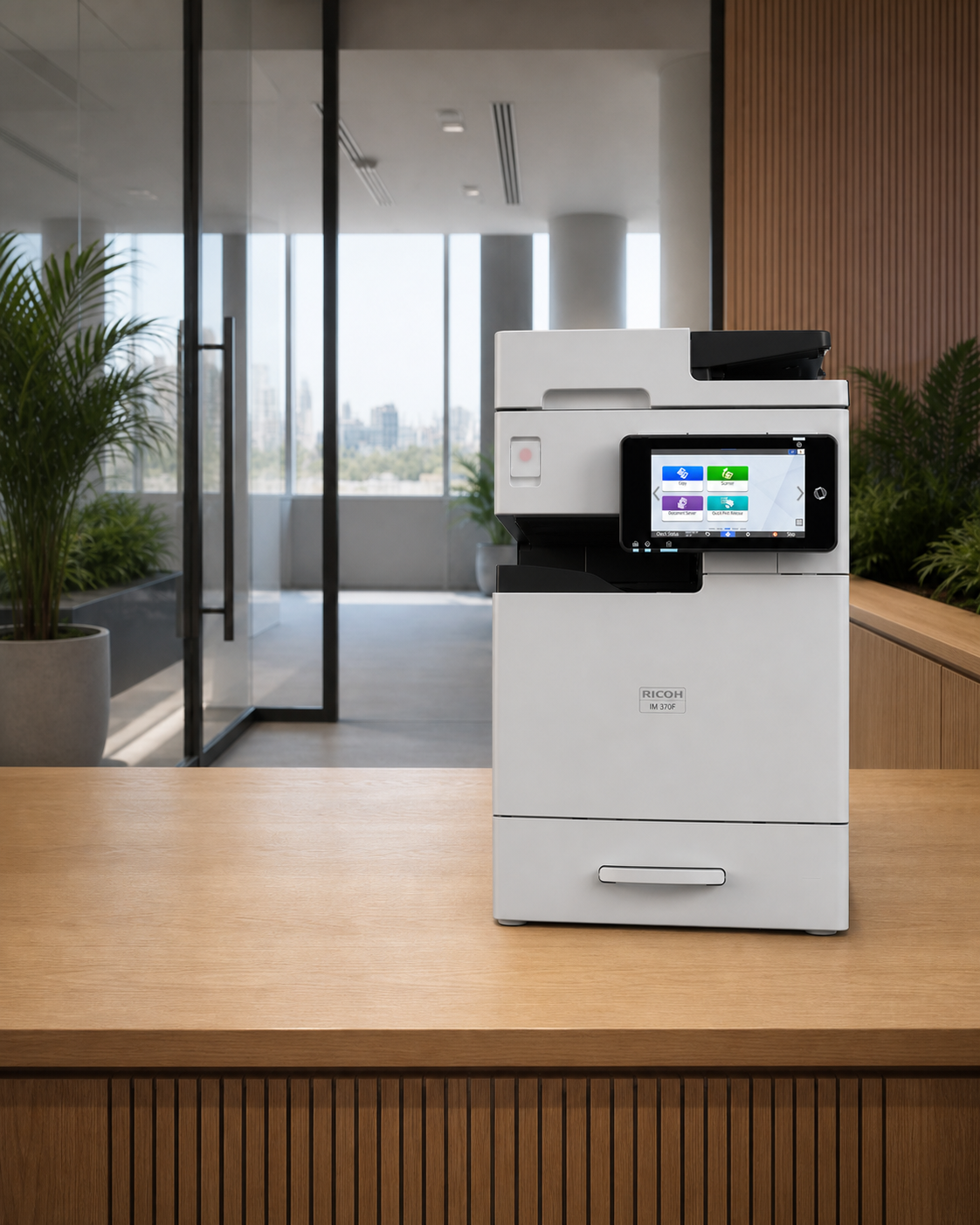

Ricoh IM 370F
Compact A4 mono performance with flexible media handling
The IM 370F combines a compact A4 mono footprint with occasional A3 capability, 37 ppm output and a 7-inch touch panel. Always Current Technology and cloud applications help smaller teams keep workflows and security up to date.
- Prints up to 37 ppm
- A3 capability
- 7" Smart Operation Panel
- RICOH Always Current Technology
output
Black & white
paper size
A4
device type
Multifunction
print speed
37 ppm
best suited to
compact mono with occasional A3 flexibility
02
Smooth operation
Latest generation Smart Operation Panel marries powerful features with fast and simple navigation for a smooth and productive user experience.
03
RICOH Always Current Technology
Download and install security and software updates directly to your device as they become available.
04
Environmentally responsible
The outer mainframe uses 17% post-consumer recycled materials while the toner bottles are made from 100% recycled plastics.
the ion difference
the machine is only one part of the solution
We help match the device to your actual print volumes, workflows and security needs, then support it with proactive service, automatic toner fulfilment and one local point of contact.
product guide
review the detailed brochure
Review configuration options and feature details relevant to the Ricoh IM 370F.
download brochuretechnical detail
specifications
The full specification set is included on the page so your team can compare devices without searching through separate documents.
Configuration+
- Functions
- Copy, print, scan, fax
- Colour
- No
- Storage
- eMMC 64 GB
- Memory - standard
- 6 GB (Mainframe 2 GB + Smart Operation Panel 4 GB)
- Operation panel
- 7" Smart Operation Panel
Physical dimensions+
- Physical dimensions (WxDxH)—mainframe
- 374 x 493 x 640 mm
- Weight—mainframe
- 41 kg
Media handling+
- Standard input capacity (sheets)
- 600
- Maximum input capacity (sheets)
- 2,100
- Standard output capacity (sheets)
- 250
- Maximum output capacity (sheets)
- 250
- Paper input configuration - standard
- 500-sheet paper input tray, 100-sheet bypass tray, duplex unit, 50-sheet SPDF
- Paper output configuration - standard
- 250 sheets—A4 LEF or smaller 100 sheets—Larger than A4 LEF
- Supported media
- Plain paper (type not displayed), recycled paper, special paper 1–2, colour paper, letterhead, pre-printed paper, OHP, label paper, envelope
- Maximum paper size
- A3—via bypass tray, SPDF
- Media weight (g/m2)
- 52–216
Connectivity+
- Interfaces - standard
- Mainframe 10Base-T/100Base-TX/1000Base-T (Gigabit Ethernet) USB Host Type A—1 port USB Device Type B—1 port Smart Operation Panel Bluetooth 5.2 USB Host Type A—1 port for USB Flash memory Optional USB Type A—1 port for NFC card reader
- Interfaces - optional
- IEEE 802.11a/b/g/n (2.4 GHz, 5 GHz)—Wireless LAN Device Server Option Type M54—additional 10Base T/100Base TX/1000Base-T port
- Network protocols - standard
- TCP/IP (IPv4, IPv6)
Copy features+
- Copy speed
- Single document, multiple copies 37 cpm—via platen 37 cpm—via SPDF Multiple documents, single copy 28 cpm—via SPDF
- First copy time
- 4.7 seconds—via platen 6.4 seconds—via SPDF
- Copy resolution
- 600 x 600 dpi—printing 300 x 600 dpi—scanning, 200% 600 x 600 dpi—scanning, 201%
- Zoom range
- 25%–400% in 1% steps
- Duplex copy
- Supported
- Book copy
- Booklet, magazine, layout and booklet
- ID card copy
- Supported
Print features+
- Print speed black and white
- 37 ppm—A4 LEF, simplex 28 ppm—A4 LEF, duplex
- First print time
- 3.8 seconds
- Print resolution
- 1,200 x 1,200 dpi
- Page description languages (PDLs)
- Standard PostScript 3 emulation, PDF Direct emulation, PCL, MediaPrint TIFF Optional Genuine Adobe PostScript 3, IPDS
- Printer drivers
- PCL 5e, PCL 6, PostScript 3
- Duplex printing
- Standard
- Mobile printing
- Yes
- Print from USB/SD
- Supported
Scan features+
- Scan speed
- A4 LEF, via SPDF, 200 dpi, 300 dpi 46 ipm or faster—simplex 92 ipm or faster—duplex
- Scan methods
- Scan to USB, Scan to email, Scan to folder (SMB, FTP), Scan to URL, Scan to PDF/A, Scan to Searchable PDF (embedded), Scan to Digitally Signed PDF Note: Optional OCR unit required for Scan to Searchable PDF.
- Colour scanning
- Standard
- Scan resolution
- 100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi, 1,200 dpi Note: 1,200 dpi is only supported with TWAIN scanning.
- Scan to file types
- Single-and multi-page TIFF Single-page JPEG Single- and multi-page PDF, PDF/A
- Scan to email
- Protocols SMTP gateway, TCP/IP Authentication SMTP authentication, POP before SMTP authentication Scan resolution 100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi Scan to email file types TIFF, JPEG, PDF, PDF-A, High Compression PDF, Encrypted PDF, Searchable PDF Note: Optional OCR unit required for Scan to Searchable PDF.
- Scan to folder
- Protocols SMB, FTP Security Client folder logon, encryption of logon name and password during transmission Scan resolution 100 pi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi Search for client folders Supported Scan to folder file types Searchable PDF, single-page JPEG, single-page PDF, single-page PDF/A, single-page TIFF, single-page high compression PDF, searchable PDF, multi-page multi page PDF/A, multi-page TIFF, multi-page high compression PDF
- TWAIN scanning
- Scan mode Standard, Photo, OCR, Filing Scan speed A4 LEF, 200 dpi, 300 dpi 46 ipm—simplex 92 ipm—duplex Scan resolution 100–1,200 dpi
Fax features+
- Fax types
- G3 fax, Internet fax, IP fax, LAN-Fax, Paperless fax, Direct SMTP fax
- Fax circuit
- PSTN, PBX
- Fax compatibilty
- ITU-T (CCITT), G3
- Fax modem speed
- 2,400 bps–33.6 Kbps—G3, standard with automatic shift down
- Fax compression methods
- MH, MR, MMR
- Fax resolution
- 200 x 100 dpi, 8 x 3.85 lines/mm—Standard Mode 200 x 200 dpi, 8 x 7.7 lines/mm—Detail Mode 8 x 15.4 lines/mm, 16 x 15.4 lines/mm—Super Fine Mode
- G3 fax transmission speed
- Approximately 3 seconds
- Fax SAF memory capacity
- Standard 4 MB—approximately 320 pages Optional 60 MB—approximately 4,800 pages
- Fax memory backup
- 1 hour
- Quick dials
- 2,000 numbers
Security features+
- Data Overwrite Security System (DOSS) - Standard
- Yes—optional HDD unit required
- Encryption
- Encryption of data sent via Scan to email and Fax forwarding (S/MIME) eMMC encryption
- Authentication
- User authentication—Windows and LDAP via Kerberos, Basic, User Code 802.1x wired authentication Wireless LAN security (WEP, WPA2, 11i) IPv6 Quota setting WiFi Protected Setup (WPS) support
Supported operating environments+
- Windows
- Windows 8.1 Windows Server 2012 Windows Server 2012 R2 Windows 10 Windows Server 2019 Windows 11 Windows Server 2022
- Macintosh
- OS X Native v10.15 or later—PostScript 3 only
- Unix
- Sun Solaris—10 HP-UX—11.x, 11iv2, 11iv3 Red Hat Linux—Enterprise, v5, v6 SCO OpenServer—5.0.7, 6.0 IBM AIX—v7.1, v7.2
- SAP
- Environment—R/3, S/4 Platforms—SAP R/3 (release versions 3.0 and higher), SAP R/3 Enterprise, mySAP ERP (2004 and higher), SAP HANA Page description language—PCL Character sets—Latin-1, Latin-2, Unicode Supported features—Available for the printing of all SAP document types (SAPScript, Smartforms, ABAP) Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5, MSI, USPS POSTNET, EAN/UPC OCR fonts—OCR A, OCR B
Software and solutions+
- Standard
- @Remote Embedded Web Image Monitor
- Optional
- RICOH Streamline NX v3 GlobalScan NX Enhanced Locked Print NX v2 and FlexRelease Server v2 FlexRelease CX Card Authentication Package v2 and Enterprise Server v2 Device Manager NX Lite and Accounting Printer Driver Packager NX RICOH @Remote Connector NX RICOH Print Management Cloud
- Mobile apps
- RICOH Smart Device Connector
Environmental features+
- Power source
- 220–240 V, 50/60 Hz—Asia Pacific 110 V, 60 Hz—Taiwan
- Power consumption
- 1,780 W—maximum power, guaranteed 528.8 W—printing, nominal 26.4 W—Ready Mode, nominal 0.45 W—Energy Saver Mode (Sleep Mode), nominal
- Typical Electricity Consumption (TEC)
- 0.38 kWh
- Warm-up time
- 32 seconds or less—Quick Mode 60 seconds or less—Without Quick Mode
- Recovery time
- 8.8 seconds or less—Energy Saver Mode (Sleep Mode)
- Green labels
- Thai Green Label Scheme, Hong Kong Energy Efficiency Labelling Scheme
Specifications are based on current Ricoh Australia product information and may change. Optional features can require additional hardware, software or configuration.
compare nearby models
related ricoh devices
common questions
about theIM 370F
Quick answers about the device, where it fits and how ion can support it.
Black & whiteA4Multifunction37 ppm
What type of device is the IM 370F?+
The IM 370F is an A4 black & white multifunction device that prints at up to 37 pages per minute. Its core functions are copy, print, scan, fax.
Who is the IM 370F best suited to?+
Productive small-to-medium departments that need A4 printing, copying and scanning in one supported device, especially where compact A4 mono performance with flexible media handling matters.
Can ion supply and support the IM 370F?+
ion can assess your print volumes, workflows and security needs, configure the right IM 370F solution, and support it through a managed print arrangement with local service and automatic toner fulfilment.
