01
Well-rounded performer
Impressive colour print, copy, scan, and fax functionalities, with a printing/copying speed of up to 32 pages per minute.
A4 colour multifunction printer

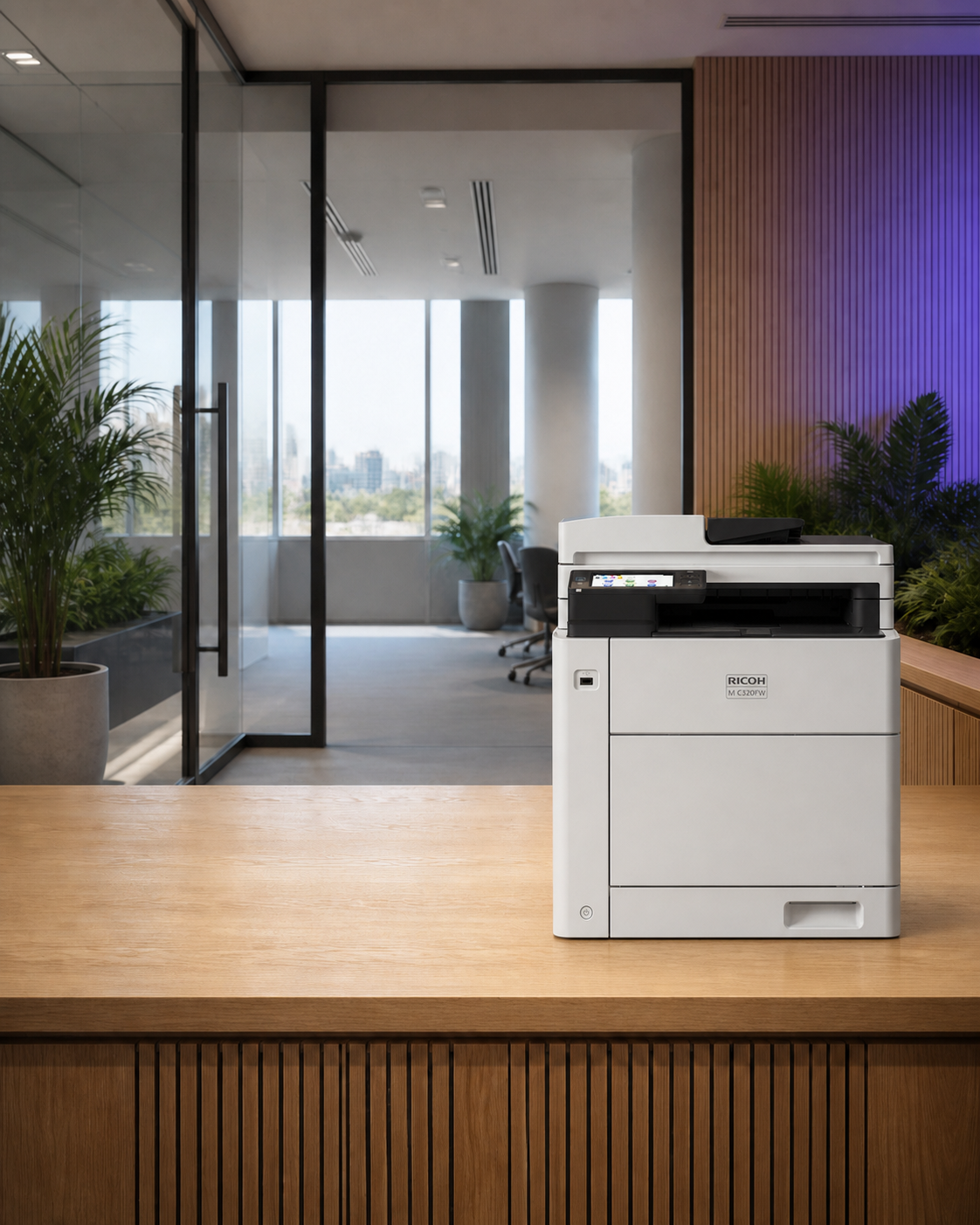

Ricoh M C320FW
Wireless A4 colour versatility for smaller workplaces
The M C320FW makes 32 ppm colour multifunction simple for smaller workplaces. Standard wireless networking, a 4.3-inch touchscreen, high-yield toner support and mobile setup tools reduce the effort of getting a capable A4 device running.
- Prints up to 32 ppm
- Standard wireless connectivity
- High-yield toners
- Top-tier sustainability features
output
Colour
paper size
A4
device type
Multifunction
print speed
32 ppm
best suited to
easy wireless colour for smaller offices
02
Easy setup and operation
Easy installation wizard, 4.3" touchscreen, and the RICOH Support Station mobile app provide a smooth and efficient user experience.
03
Energy efficient
New low-melt toner technology and class-leading TEC values help minimise power consumption to save cost.
04
Focus on security
Secure your data with built-in user authentication and the latest security features, such as TLS 1.3.
the ion difference
the machine is only one part of the solution
We help match the device to your actual print volumes, workflows and security needs, then support it with proactive service, automatic toner fulfilment and one local point of contact.
product guide
review the detailed brochure
Review configuration options and feature details relevant to the Ricoh M C320FW.
download brochuretechnical detail
specifications
The full specification set is included on the page so your team can compare devices without searching through separate documents.
Configuration+
- Functions
- Copy, print, scan, fax
- Colour
- Yes
- Memory - standard
- 512 MB
- Operation panel
- 4.3" touch operation panel
Physical dimensions+
- Physical dimensions (WxDxH)—mainframe
- 410 x 429 x 483 mm
- Weight—mainframe
- 29.9 kg
Media handling+
- Standard input capacity (sheets)
- 250
- Maximum input capacity (sheets)
- 800
- Standard output capacity (sheets)
- 150
- Maximum output capacity (sheets)
- 150
- Paper input configuration - standard
- 250-sheet paper input tray, 50-sheet bypass tray, 50-sheet SPDF, duplex unit
- Paper output configuration - standard
- 150-sheet face-down paper output tray
- Supported media
- Standard tray Plain Paper, Recycled Paper, Coloured Paper, Special Paper 1–3, Letterhead, Preprinted Paper, Bond Paper, Cardstock, Label Paper, Backing Paper, Envelope, Coated Paper Bypass tray Plain Paper, Recycled Paper, Colour Paper, Special Paper 1-3, Letterhead, Preprinted paper, Bond Paper, Cardstock, Label Paper, Backing Paper, Envelope, Coated Paper Optional tray Plain Paper, Recycled Paper, Coloured Paper, Special Paper1-3, Letterhead, Preprinted Paper, Bond Paper, Cardstock, Label Paper, Backing Paper, Coated Paper
- Maximum paper size
- A4
- Media weight (g/m2)
- 60–200
Connectivity+
- Interfaces - standard
- 10Base-T/100Base-TX/1000Base-T (Gigabit Ethernet) USB Host Type A—2 ports USB Device Type B—1 port Wireless LAN (IEEE 802.11 a/b/g/n/ac) NFC tag
- Network protocols - standard
- TCP/IP (IPv4, IPv6)
Copy features+
- Copy speed
- 32 cpm—black and white and colour
- First copy time
- 7 seconds or less—black and white 14 seconds or less—colour
- Copy resolution
- 600 x 600 dpi—scanning and printing
- Zoom range
- 25%–400% in 1% steps
- Enlargement ratios
- 400%, 200%, 141%, 122%, 115%
- Reduction ratios
- 93%, 87%, 82%, 71%, 61%, 50%, 25%
- Duplex copy
- Supported
- ID card copy
- Supported
Print features+
- Print speed colour
- 32 ppm—simplex 16 ppm—duplex
- Print speed black and white
- 32 ppm—simplex 16 ppm—duplex
- First print time
- 7.4 seconds—black and white, 8.4 seconds—colour
- Print resolution
- 600 x 600 dpi
- Page description languages (PDLs)
- PCL 6, PostScript3 emulation, PDF Direct emulation
- Printer drivers
- PCL 6
- Duplex printing
- Standard
- Mobile printing
- AirPrint, Mopria®, RICOH Smart Device Connector
- Print from USB/SD
- Not supported
Scan features+
- Scan speed
- A4 SEF, black and white 30 ipm—simplex, 200 dpi 42 ipm—duplex, 200 dpi A4, colour 27 ipm—simplex, 200 dpi 42 ipm—duplex, 200 dpi
- Scan methods
- Scan to USB, Scan to email, Scan to folder (SMB, FTP)
- Colour scanning
- Standard
- Scan resolution
- 100 dpi, 150 dpi, 200 dpi, 300 dpi—default, 400 dpi, 600 dpi
- Scan to file types
- Single- and multi-page TIFF Single-page JPEG (black and white greyscale or full colour) Single- and multi-page PDF
- Scan to email
- Protocols SMTP Authentication SMTP authentication, POP before SMTP authentication Scan resolution 100 dpi, 150 dpi, 200 dpi, 300 dpi (default), 400 dpi, 600 dpi Scan to email file types Single page JPEG, single page PDF, single page TIFF
- Scan to folder
- Protocols SMB, FTP Resolution 100 dpi, 150 dpi, 200 dpi, 300 dpi (default), 400 dpi, 600 dpi Scan to folder file types Single page JPEG, Single page PDF, Single page TIFF, Multi-page PDF, Multi-page TIFF
- TWAIN scanning
- Scan speed Black and white 30 ipm—simplex 42 ipm—duplex Colour 27 ipm—simplex 42 ipm—duplex Scan mode Standard, Photo, OCR, Filing Scan resolution 75, 100, 150, 200, 300, 400, 500, 600, 1,200, 2,400, 4,800, 9,600, 19,200 dpi—black and white 75, 100, 150, 200, 300, 400, 500, 600 dpi—colour
Fax features+
- Fax types
- G3 fax, Internet fax (T.37), LAN-Fax, Paperless fax, Direct SMTP fax
- Fax circuit
- PSTN, PBX
- Fax compatibilty
- ITU-T (CCITT), G3
- Fax modem speed
- 28.8 Kbps
- Fax compression methods
- MH, MR, MMR, JBIG
- Fax resolution
- 200 x 100 dpi—8 x 3.85 lines/mm 200 x 200 dpi—8 x 7.7 lines/mm
- G3 fax transmission speed
- Approximately 3 seconds
- Fax SAF memory capacity
- Standard 2.5 MB—100 pages
- Quick dials
- 220 fax destinations—up to 20 can be registered as favourites
Security features+
- Authentication
- 802.1x wired authentication IEEE 802.11 security (WEP, WPA, WPA2, WPA3) User code authentication—available on Locked Print Network user authentication
Supported operating environments+
- Windows
- 10 (32-/64-bit), 11, Server 2016, Server 2019, Server 2022
- Macintosh
- MacOS 11 and later
Software and solutions+
- Standard
- @Remote Embedded Web Image Monitor
- Optional
- Device Manager NX Lite Device Manager NX Accounting RICOH @Remote Connector NX
- Mobile apps
- RICOH Smart Device Connector RICOH Support Station1 1—Some languages and features might not be supported.
Environmental features+
- Power source
- 220–240 V, 50/60 Hz—Asia Pacific 110 V, 60 Hz—Taiwan
- Power consumption
- 1,420 W or less—maximum 120 W or less—Ready Mode 0.61 W—Energy Saver Mode (Sleep Mode)
- Typical Electricity Consumption (TEC)
- 0.33 kWh
- Warm-up time
- 22 seconds—Quick Mode
- Recovery time
- 10 seconds
- Other environmental features
- System Reset Timer
Specifications are based on current Ricoh Australia product information and may change. Optional features can require additional hardware, software or configuration.
compare nearby models
related ricoh devices
common questions
about theM C320FW
Quick answers about the device, where it fits and how ion can support it.
ColourA4Multifunction32 ppm
What type of device is the M C320FW?+
The M C320FW is an A4 colour multifunction device that prints at up to 32 pages per minute. Its core functions are copy, print, scan, fax.
Who is the M C320FW best suited to?+
Small and growing teams that need A4 printing, copying and scanning in one supported device, especially where wireless A4 colour versatility for smaller workplaces matters.
Can ion supply and support the M C320FW?+
ion can assess your print volumes, workflows and security needs, configure the right M C320FW solution, and support it through a managed print arrangement with local service and automatic toner fulfilment.
