01
Fast scanning speeds
Send 220 black & white and 240 colour scans per minute effortlessly.
A3 black & white multifunction printer

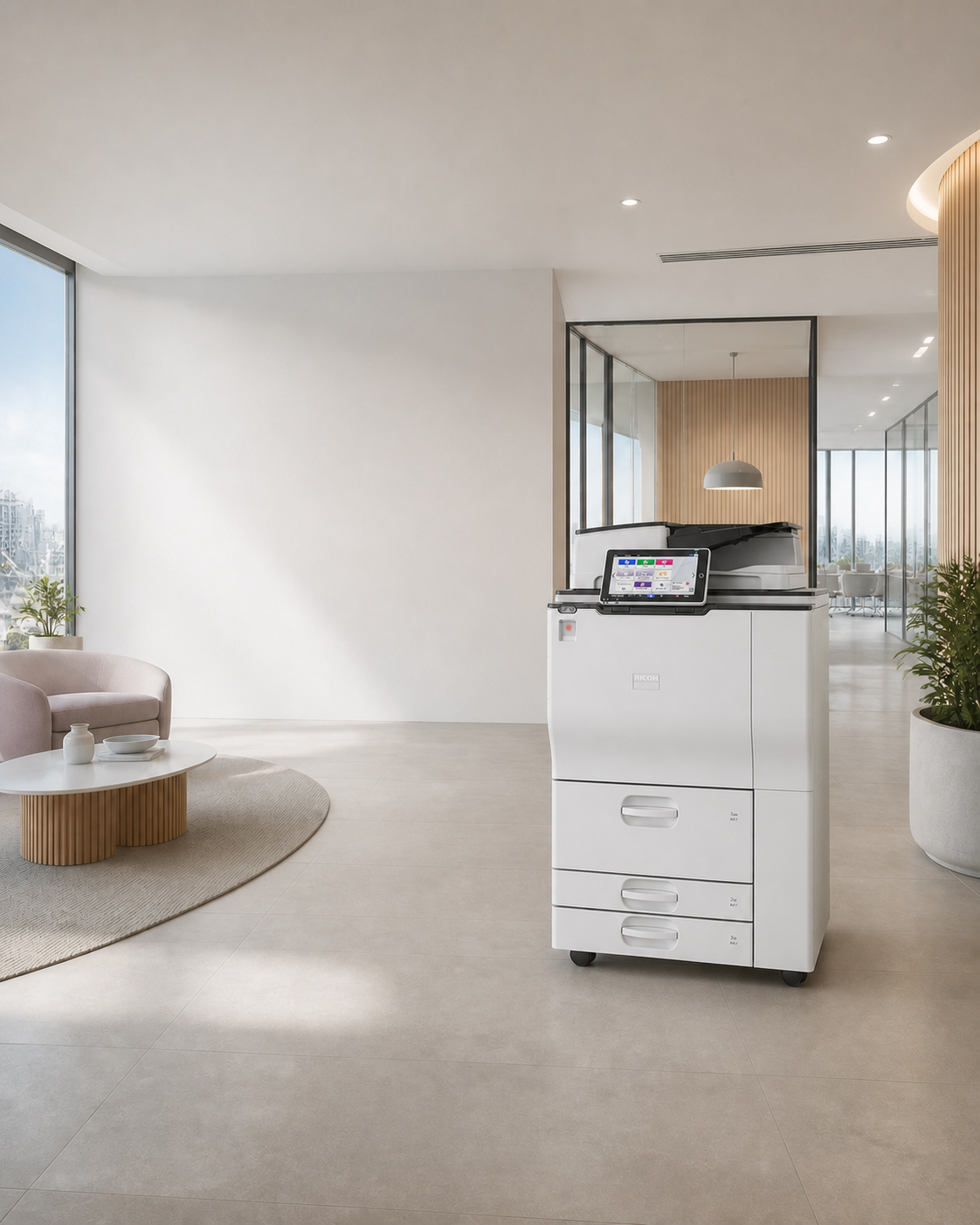

Ricoh IM 7000
High-volume A3 mono output for central print areas
The IM 7000 is built for centralised 70 ppm mono work, with up to 8,700 sheets of input and rapid colour or black-and-white scanning. Broad media handling, finishing and secure digital delivery help replace several manual document steps.
- Copy, print, scan, optional fax
- Prints up to 70 ppm
- 8,700-sheet max input
- RICOH Always Current Technology
output
Black & white
paper size
A3
device type
Multifunction
print speed
70 ppm
best suited to
centralised scanning and long uninterrupted runs
02
Versatile paper choices
Print on paper stock from weights as thin as 52g/m2 or as thick as 300g/m2.
03
No waiting around on prints
First print ready in under 5 seconds.
04
Digitise your hardcopies in editable file formats
Simply scan to convert cumbersome paper documents into ever ready Excel, Word or PDF documents.
the ion difference
the machine is only one part of the solution
We help match the device to your actual print volumes, workflows and security needs, then support it with proactive service, automatic toner fulfilment and one local point of contact.
product guide
review the detailed brochure
Review configuration options and feature details relevant to the Ricoh IM 7000.
download brochuretechnical detail
specifications
The full specification set is included on the page so your team can compare devices without searching through separate documents.
Configuration+
- Functions
- Copy, print, scan, optional fax
- Storage
- 320 GB
- Memory - standard
- 4 GB—2 GB mainframe + 2 GB Smart Operation Panel
- Operation panel
- 10.1-inch Smart Operation Panel (G2.5)
Physical dimensions+
- Physical dimensions (WxDxH)—mainframe
- 690 x 883 x 1,161 mm
- Weight—mainframe
- 200 kg
Media handling+
- Standard input capacity (sheets)
- 4,300
- Maximum input capacity (sheets)
- 8,700
- Maximum output capacity (sheets)
- 3,500
- Paper input configuration - standard
- 1,550-sheet x 2 tandem tray, 2 x 550-sheet paper input trays, 100-sheet bypass tray, 220-sheet SPDF, Duplex unit
- Supported media
- Plain paper1, recycled paper, colour paper 1–2, special paper, letterhead, bond paper, tracing paper, label, plain paper 1–2, middle thick, thick paper 1–4 1—Not displayed as paper type
- Maximum paper size
- A3
- Media weight (g/m2)
- 52.3–300
Connectivity+
- Interfaces - standard
- Mainframe 10Base-T/100Base-TX/1000Base-T (Gigabit Ethernet) USB 2.0 Host Type A—2 ports USB 2.0 Device Type B—1 port Smart Operation Panel IEEE 802.11 b/g/n (Wireless LAN)1 Bluetooth 4.22 SD Card Slot—SDHC memory card USB Host Type A—USB Flash memory USB Host Type A—1 port for USB keyboard (optional)2 USB Host Type mini B—for NFC card reader (optional)2 NFC Tag2 1—Limited printing for a peer-to-peer mobile device via RICOH Smart Device Connector 2—Cannot be used for printing
- Interfaces - optional
- IEEE 1284 IEEE 802.11 a/b/g/n (Wireless LAN) Device Server Option Type M37 (additional NIC port) Copy Connector Type M25
- Network protocols - standard
- TCP/IP (IPv4, IPv6)
Copy features+
- Copy speed
- 70 cpm
- First copy time
- 3.2 seconds
- Copy resolution
- 600 x 600 dpi—scanning 1,200 x 1,200 dpi—printing
- Zoom range
- 25%–400% in 1% steps
- Enlargement ratios
- 400%, 200%, 141%, 122%, 115%
- Reduction ratios
- 93%, 82%, 75%, 71%, 65%, 50%, 25%
- Duplex copy
- Simplex to duplex, duplex to duplex—with SPDF, book to duplex, front and back to duplex
- Book copy
- Booklet, magazine, layout, and booklet
- ID card copy
- Supported
Print features+
- Print speed black and white
- 70 ppm
- First print time
- 4.7 seconds or less
- Print resolution
- 300 x 300 dpi, 600 x 600 dpi, 1,200 x 1,200 dpi
- Page description languages (PDLs)
- Standard PCL 5e, PCL 6, PostScript3 emulation, PDF Direct emulation Optional Adobe PostScript 3, Adobe PDF Direct, XPS, IPDS
- Printer drivers
- PCL 6, PostScript3 emulation
- Duplex printing
- Standard
- Mobile printing
- RICOH Smart Device Connector
- Print from USB/SD
- Supported
Scan features+
- Scan speed
- Via SPDF 120 ipm—simplex 240 ipm—duplex
- Scan methods
- Scan to USB/SD, Scan to email, Scan to folder (SMB, FTP), Scan to URL, Scan to PDF/A, Scan to digitally signed PDF, Scan to searchable PDF (embedded)
- Colour scanning
- Standard
- Scan resolution
- 100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi, 1,200 dpi Note: Maximum scan size for 1,200 dpi is A5.
- Scan to file types
- Single- and multi-page TIFF Single-page JPEG Single- and multi-page PDF, PDF/A Single- and multi-page High-Compression PDF
- Scan to email
- Protocols SMTP gateway, TCP/IP Authentication SMTP authentication, POP before SMTP authentication Scan resolution 100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi Scan to email file types Single-page TIFF, JPEG, PDF, PDF/A, High-Compression PDF, Encrypted PDF, Searchable PDF Multi-page TIFF, PDF, PDF/A, High-Compression PDF, Encrypted PDF, Searchable PDF Note: Optional OCR unit is required to support scanning to a searchable PDF.
- Scan to folder
- Protocols SMB, FTP, WSD (Web Services on Devices for Scanning) Security Client folder logon, transmission encryption of logon name and password Resolution 100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi Search for client folders SMB—browsing directly to the designated folder FTP—by folder name Scan to folders file types Single-page TIFF, JPEG, PDF, PDF/A, High-Compression PDF Multi-page TIFF, PDF, PDF/A, High-Compression PDF
- TWAIN scanning
- Scan mode Standard, Photo, OCR, Filing Scan resolution 100–1,200 dpi Note: Maximum scan size for 1,200 dpi is A5.
Fax features+
- Fax types
- G3 fax, Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax
- Fax circuit
- PSTN, PBX
- Fax compatibilty
- ITU-T (CCITT), G3—maximum 3 lines
- Fax modem speed
- 2,400 bps–33.6 Kbps—G3, standard with automatic shift down
- Fax compression methods
- MH, MR, MMR, JBIG
- Fax resolution
- Standard Mode 200 x 100 dpi—8 x 3.85 lines/mm Detail Mode 200 x 200 dpi—8 x 7.7 lines/mm Super Fine Mode 400 x 400 dpi—8 x 15.4 lines/mm 400 x 400 dpi—16 x 15.4 lines/mm Note: Super fine mode is supported with the optional SAF memory.
- G3 fax transmission speed
- 2 seconds approximately—JBIG, ITU-T No. 1 chart, TTI off, memory transmission 3 seconds approximately—MMR, ITU-T No. 1 chart, TTI off, memory transmission
- Fax SAF memory capacity
- Standard—4 MB, approximately 320 pages With optional SAF memory—60 MB, approximately 4,800 pages
- Fax memory backup
- 1 hour
- Quick dials
- 2,000 numbers
Security features+
- Data Overwrite Security System (DOSS) - Standard
- Yes
- Data Overwrite Security System (DOSS) - Optional
- Type M19—available for customers who require their devices to comply with ISO 15408 Common Criteria certification
- Encryption
- PDF, Secure print encryption Authentication password encryption Encryption of data sent via Scan to email and Fax forwarding (S/MIME)
- Authentication
- 802.1x wired authentication IEEE 802.11i security (WEP, WPA) IPv6 Quota setting/Account limit User authentication—Windows and LDAP via Kerberos, basic, user code User code authentication Wi-Fi Protected Setup (WPS) support
Supported operating environments+
- Windows
- Windows 7 Windows Server 2008 Windows Server 2008 R2 Windows 8.1 Windows Server 2012 Windows Server 2012 R2 Windows 10 Windows Server 2016 Windows Server 2019
- Macintosh
- OS X Native v10.12 or later—PostScript 3 only
- Unix
- Sun Solaris—10 HP-UX—11.x, 11iv2, 11iv3 Red Hat Linux—Enterprise v4, v5, v6 SCO OpenServer—5.0.7, 6.0 IBM AIX—6.1, 7.1, 7.2
- SAP
- Environment—R/3, S/4 Platform—SAP R/3 (Release versions 3.0 and higher), SAP R/3 Enterprise, mySAP ERP (2004 and higher), SAP HANA Page Description Language (PDL)—PCL Character set—Latin-1, Latin-2, Unicode Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5 interleaved/Industrial/Matrix, MSI, USPS Postnet, UPC/EAN OCR fonts—OCR A, OCR B Other supported features—Input/Output Bin, Duplex, Stapling, Punching, Resolution, Collation, EconoMode / TonerSaving, Smoothing, Page Protect, Auto Tray Change/Optional Tray Select, User Authentication
Software and solutions+
- Standard
- @Remote Embedded Web Image Monitor
- Optional
- @Remote Streamline NX v3 Global Scan NX Card Authentication Package Enhanced Locked Print NX Device Manager NX Lite Device Manager NX Accounting Printer Driver Packager NX @Remote Connector NX
- Mobile apps
- RICOH Smart Device Connector
Environmental features+
- Power source
- 220–240 V, 8.5 A, 50/60 Hz
- Power consumption
- 1,900 W or less—maximum power 1,140 W or less—operating power 400 W or less—Ready Mode 163 W or less—Low Power Mode 0.6 W or less—Energy Saver Mode (Sleep Mode)
- Typical Electricity Consumption (TEC)
- 1.326 kWh
- Warm-up time
- 20 seconds or less
- Power saving mode
- 1 minute shift time—Energy Saver Mode (Sleep Mode) 1 minute shift time—Low Power Mode
- Recovery time
- 20 seconds—Energy Save Mode (Sleep Mode) 10 seconds—Low Power Mode
- Other environmental features
- Eco-friendly indicator, Energy Saver Timer
Specifications are based on current Ricoh Australia product information and may change. Optional features can require additional hardware, software or configuration.
compare nearby models
related ricoh devices
common questions
about theIM 7000
Quick answers about the device, where it fits and how ion can support it.
Black & whiteA3Multifunction70 ppm
What type of device is the IM 7000?+
The IM 7000 is an A3 black & white multifunction device that prints at up to 70 pages per minute. Its core functions are copy, print, scan, optional fax.
Who is the IM 7000 best suited to?+
High-throughput departments and central print areas that need A3 printing, copying and scanning in one supported device, especially where high-volume A3 mono output for central print areas matters.
Can ion supply and support the IM 7000?+
ion can assess your print volumes, workflows and security needs, configure the right IM 7000 solution, and support it through a managed print arrangement with local service and automatic toner fulfilment.
