01
Efficient digitisation
The advanced SPDF scans up to 300 ipm and handles receipts, business cards, cheques, and other small formats with ease.
A3 black & white multifunction printer

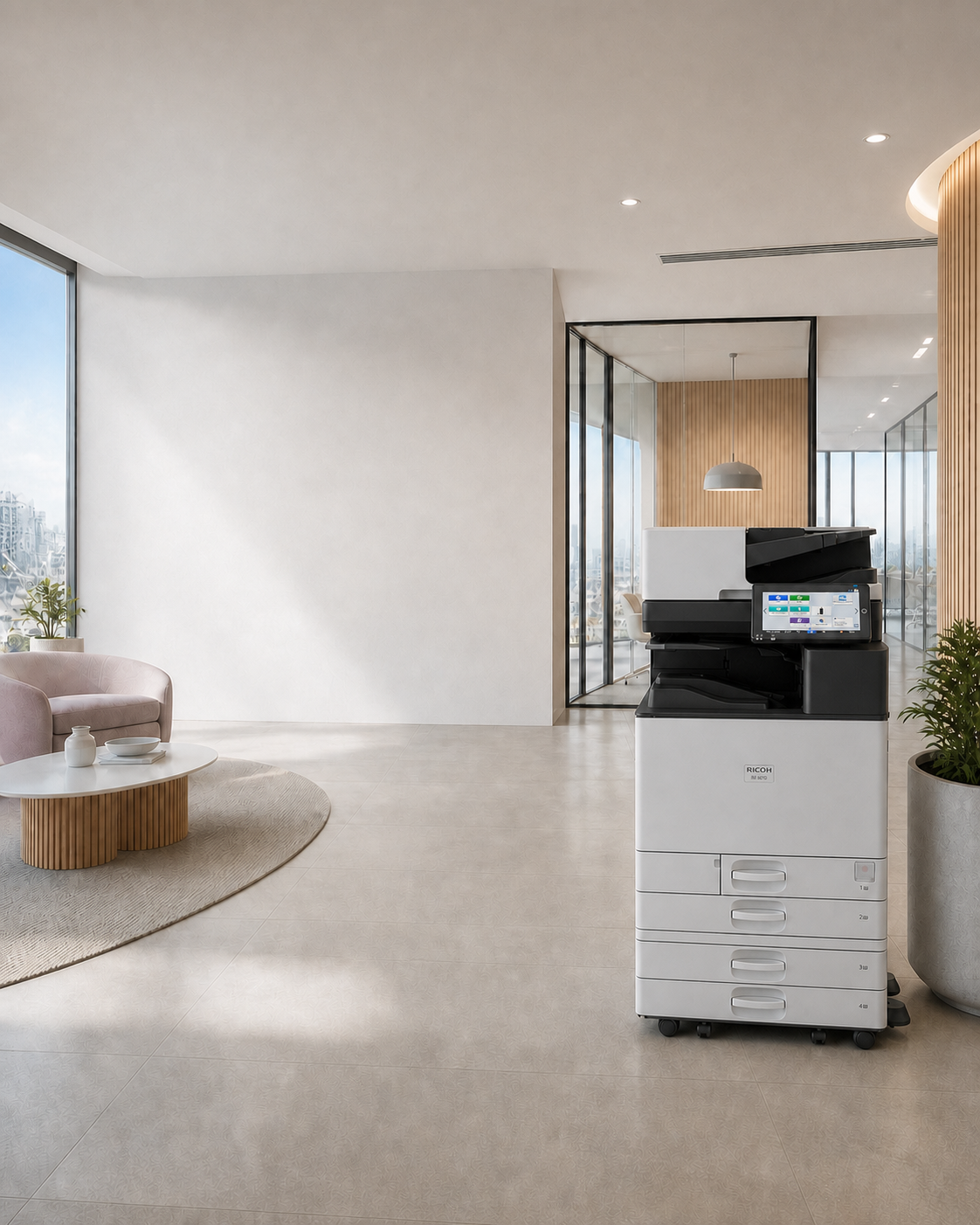

Ricoh IM 6010
High-volume A3 productivity without unnecessary complexity
Built for heavier shared use, the IM 6010 delivers 60 ppm mono output with high-speed digitisation, generous paper capacity and professional finishing options. Ongoing security updates and efficient consumables support a dependable central device.
- Copy, print, scan, optional fax
- Prints up to 60 ppm
- Top-tier environmental performance
- Advanced data protection
output
Black & white
paper size
A3
device type
Multifunction
print speed
60 ppm
best suited to
high-volume scanning and document production
02
Walk-up simplicity
The intuitive Smart Operation Panel provides advanced functionality with a user-friendly interface.
03
Secure printing
Comprehensive security features and ongoing updates help protect sensitive information.
04
Maximum uptime
Experience fewer interruptions with robust durability and generous expandable paper capacity.
the ion difference
the machine is only one part of the solution
We help match the device to your actual print volumes, workflows and security needs, then support it with proactive service, automatic toner fulfilment and one local point of contact.
product guide
review the detailed brochure
Review configuration options and feature details relevant to the Ricoh IM 6010.
ion-branded brochure in preparation
technical detail
specifications
The full specification set is included on the page so your team can compare devices without searching through separate documents.
Configuration+
- Functions
- Copy, print, scan, optional fax
- Storage
- 256 GB SSD
- Memory - standard
- 6 GB—2 GB mainframe + 4 GB Smart Operation Panel
- Operation panel
- 10.1" Smart Operation Panel
Physical dimensions+
- Physical dimensions (WxDxH)—mainframe
- 587 x 701 x 963 mm
- Weight—mainframe
- 91 kg
Media handling+
- Standard input capacity (sheets)
- 1,200
- Maximum input capacity (sheets)
- 4,850
- Standard output capacity (sheets)
- 500 250—B4 or larger
- Maximum output capacity (sheets)
- 3,625
- Paper input configuration - standard
- 2 x 550-sheet paper trays, 100-sheet bypass tray, 220-sheet SPDF, duplex unit
- Paper output configuration - standard
- 500-sheet face-down internal output tray
- Supported media
- Tray 1 Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high gloss coated paper, coated paper Tray 2 Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high gloss coated paper, coated paper, envelope Optional trays Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high-gloss coated paper, envelope, coated paper Bypass tray Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high-gloss coated paper, envelope, coated paper, label paper
- Maximum paper size
- SRA3
- Media weight (g/m2)
- 52–300
Connectivity+
- Interfaces - standard
- Mainframe 10Base-T/100Base-Tx (Ethernet) 1000Base-T (Gigabit Ethernet) IEEE 802.11 a/b/g/n/ac (Wireless LAN)—2.4 GHz or 5 GHz can be selected; default: auto USB 3.0 Host Type A—2 ports USB 3.0 Type B—1 port Smart Operation Panel Bluetooth 5.21 USB Host Type A—USB Flash memory USB Host Type A—optional 1 port for USB keyboard 1—Cannot be used for printing
- Interfaces - optional
- Device Server Option Type M52 (additional Ethernet/Gigabit Ethernet port)
- Network protocols - standard
- TCP/IP (IPv4, IPv6)
Copy features+
- Copy speed
- 60 cpm
- First copy time
- 2.9 seconds
- Copy resolution
- 100, 200, 300, 400, 600 dpi—scanning 1,200 x 1,200 dpi (maximum)—printing
- Zoom range
- 25%–400% in 1% steps
- Enlargement ratios
- 115%, 122%, 141%, 200%, 400%
- Reduction ratios
- 93%, 87%, 82%, 71%, 61%, 50%, 25%
- Duplex copy
- Simplex to duplex, duplex to duplex—with SPDF, book to duplex, front and back to duplex
- Book copy
- Booklet, magazine, layout and booklet
Print features+
- Print speed black and white
- 60 ppm
- First print time
- 2.4 seconds
- Print resolution
- 1,200 x 1,200 dpi / 4,800 x 1,200 dpi equivalent (maximum)
- Page description languages (PDLs)
- Standard PCL 5e, PCL 6, PostScript 3 emulation, PDF Direct emulation Optional Genuine Adobe PostScript 3, PDF Direct from Adobe
- Printer drivers
- Standard PCL 5e, PCL 6, PostScript 3 emulation Optional Genuine Adobe PostScript 3
- Duplex printing
- Standard
- Mobile printing
- Yes
Scan features+
- Scan speed
- Via SPDF 150 ppm—simplex, 200 x 200 dpi 120 ppm—simplex, 300 x 300 dpi 300 ppm—duplex, 200 x 200 dpi 220 ppm—duplex, 300 x 300 dpi
- Scan methods
- Scan to USB, Scan to email, Scan to folder, Scan to URL, Scan to SMB, Scan to FTP, Scan to PDF/A, Scan to digitally signed PDF, Scan to searchable PDF Note: Optional OCR unit is required to support scanning to a searchable PDF.
- Colour scanning
- Standard
- Scan resolution
- 100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi, 1,200 dpi Note: 1,200 dpi scanning is supported only with A5 or smaller paper size.
- Scan to file types
- Single- and multi-page TIFF Single-page JPEG Single- and multi-page PDF, PDF/A Single- and multi-page high-compression PDF
- Scan to email
- Protocols POP, IMAP 4, SMTP Authentication SMTP authentication, POP before SMTP authentication Scan resolution 100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi Scan to email file types Single-page TIFF, JPEG, PDF, PDF/A, high-compression PDF, encrypted PDF, searchable PDF Multi-page TIFF, PDF (default), PDF/A, high-compression PDF, encrypted PDF, searchable PDF Note: Optional OCR unit is required to support scanning to a searchable PDF.
- Scan to folder
- Protocols SMB, FTP Resolution 100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi Search for client folders SMB—browsing directly to the designated folder FTP—by folder name Scan to folder file types Single-page TIFF, JPEG, PDF, PDF/A, high-compression PDF, encrypted PDF, searchable PDF Multi-page TIFF, PDF (default), PDF/A, high-compression PDF, encrypted PDF, searchable PDF Note: Optional OCR unit is required to support scanning to a searchable PDF.
- TWAIN scanning
- Scan mode Standard, Photo, OCR, Filing Note: Optional OCR unit required for OCR scanning. Scan resolution 100–1,200 dpi Note: 1,200 dpi scanning is supported only with A5 or smaller paper size.
Fax features+
- Fax types
- G3 fax, Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax
- Fax circuit
- PSTN, PBX
- Fax compatibilty
- ITU-T (CCITT), G3—maximum 3 lines
- Fax modem speed
- 2,400 bps–33.6 Kbps—G3, standard with automatic shift down
- Fax compression methods
- MH, MR, MMR, JBIG
- Fax resolution
- Standard mode 200 x 100 dpi—8 x 3.85 lines/mm Detail mode 200 x 200 dpi—8 x 7.7 lines/mm Super Fine mode 400 x 400 dpi—8 x 15.4 lines/mm 400 x 400 dpi—16 x 15.4 lines/mm Note: Super Fine mode is supported with the optional SAF memory.
- G3 fax transmission speed
- 2 seconds approximately—JBIG, ITU-T No. 1 chart, TTI off, memory transmission 3 seconds approximately—MMR, ITU-T No. 1 chart, TTI off, memory transmission
- Fax SAF memory capacity
- Standard 4 MB—approximately 320 pages With optional SAF memory 60 MB—approximately 4,800 pages
- Fax memory backup
- 1 hour
- Quick dials
- 2,000 numbers
Security features+
- Encryption
- SSD, PDF, Secure print, WEP, WPA Authentication password Encryption of data sent via Scan to email and Fax forwarding (S/MIME)
- Authentication
- 802.1x wired authentication Administrator authentication IEEE 802.11i security (WPA3) IPv6 Quota setting User authentication—Windows and LDAP via Kerberos, basic, user code WiFi Protected Setup (WPS) support
Supported operating environments+
- Windows
- PCL 5e, PCL 6, and PostScript 3 Windows 10 Windows 11 Windows Server 2016 Windows Server 2019 Windows Server 2022 Windows Server 2025
- Macintosh
- MacOS 12 or later—PostScript 3 only
Software and solutions+
- Standard
- @Remote Embedded Web Image Monitor
- Optional
- Global Ricoh Smart Integration (CloudStream) RICOH Streamline NX Device Manager NX Lite APAC Ricoh Smart Integration (Connectors. Control, Control+) ESA TransFormer Host Printing Translator Set Numbering EZ Plus 2.0 EZ Charger Suite Scan to Cloud Server (AP) RICOH Edge AI
- Mobile apps
- RICOH Smart Device Connector
Environmental features+
- Power source
- 220–240 V, 50/60 Hz
- Power consumption
- 1,850 W—maximum power 748 W—operating power 37.4 W—Ready Mode 0.31 W—Energy Saver Mode (Sleep Mode)
- Typical Electricity Consumption (TEC)
- 0.66 kWh
- Warm-up time
- 22 seconds
- Recovery time
- From Energy Saver Mode 6.8 seconds
- Other environmental features
- Eco-friendly indicator, System Reset Timer
Specifications are based on current Ricoh Australia product information and may change. Optional features can require additional hardware, software or configuration.
compare nearby models
related ricoh devices
common questions
about theIM 6010
Quick answers about the device, where it fits and how ion can support it.
Black & whiteA3Multifunction60 ppm
What type of device is the IM 6010?+
The IM 6010 is an A3 black & white multifunction device that prints at up to 60 pages per minute. Its core functions are copy, print, scan, optional fax.
Who is the IM 6010 best suited to?+
Busy workgroups with sustained daily print demand that need A3 printing, copying and scanning in one supported device, especially where high-volume A3 productivity without unnecessary complexity matters.
Can ion supply and support the IM 6010?+
ion can assess your print volumes, workflows and security needs, configure the right IM 6010 solution, and support it through a managed print arrangement with local service and automatic toner fulfilment.
