booklet making · production finishing
Bring print and booklet production together with the Plockmatic PBM5000 family. Choose staple or stitch versions for portrait, landscape and suitable two-up formats, with squarefolding and face trimming.
Explore the current Plockmatic PBM5000 family for inline booklet production. Compare staple and stitch versions, format flexibility and finishing requirements alongside the press you plan to use.
Plan portrait, landscape and suitable two-up booklets as complete products.
Application illustrationexplore booklet applications
Match the binding method and finished appearance to your application.
Application illustrationexplore staple, stitch & finish
Connect the booklet maker, interfaces and press around the work you want to deliver.
explore press integrationChoose a model to compare its specifications and available options.
Plan portrait, landscape and suitable two-up booklets as complete products.
Use the PBM5000 family for brochures, catalogues and other folded publications. Start with the finished page size, page count and stock combination, then work back to the required sheet and booklet-making configuration.
Application illustration; not a production sample.

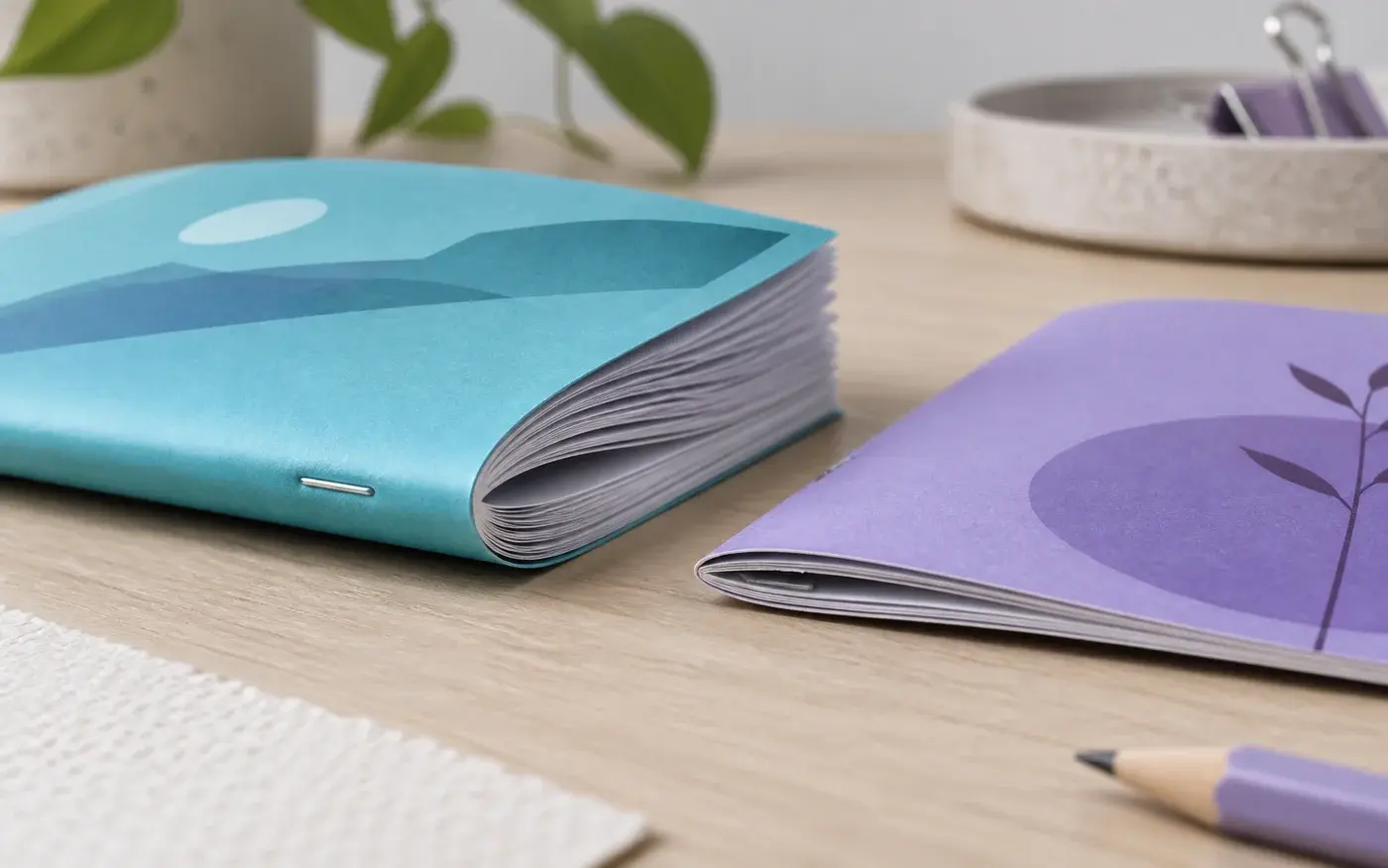

PBM5035 variants handle up to 35 sheets, and PBM5050 variants up to 50 sheets of 80 g/m² paper—up to 140 or 200 booklet pages respectively. Heavier and mixed stocks change the practical capacity.
Application illustration; not a production sample.Match the binding method and finished appearance to your application.

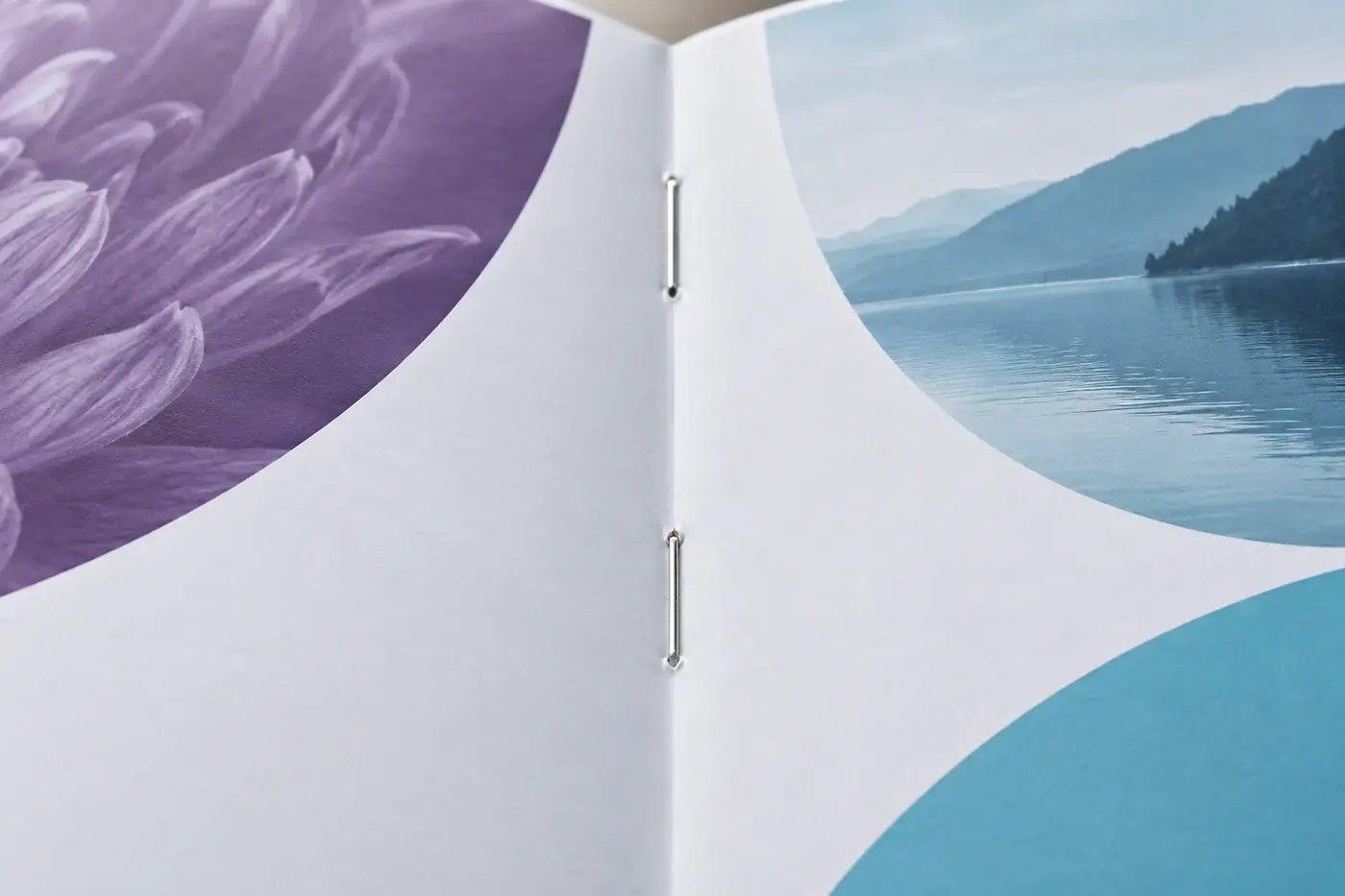

PBM5035/PBM5050 use two staple heads. The s variants use two to four stitch heads and offer additional production possibilities. Choose the model rather than assuming every capability is common to the family.
Application illustration; not a production sample.

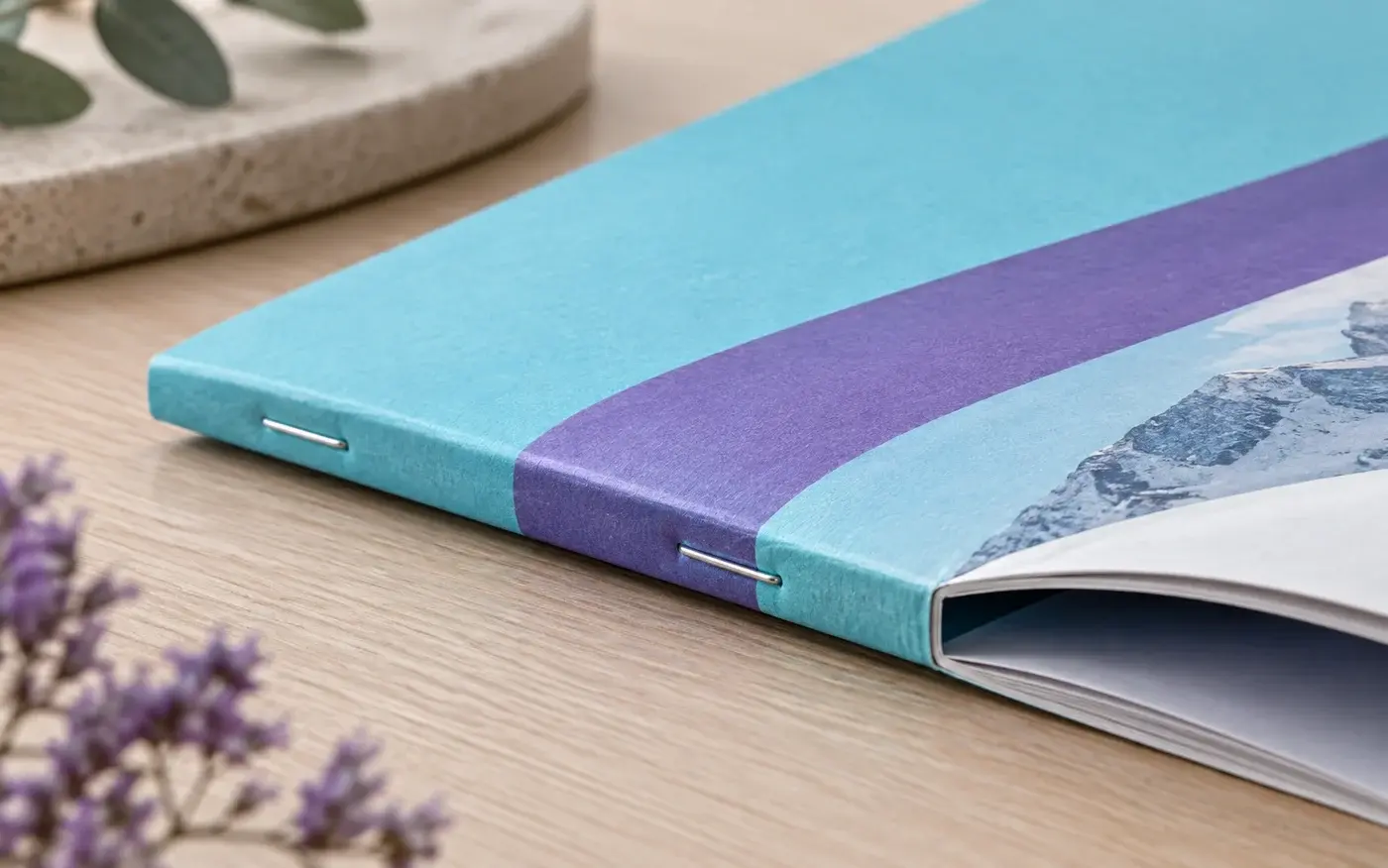

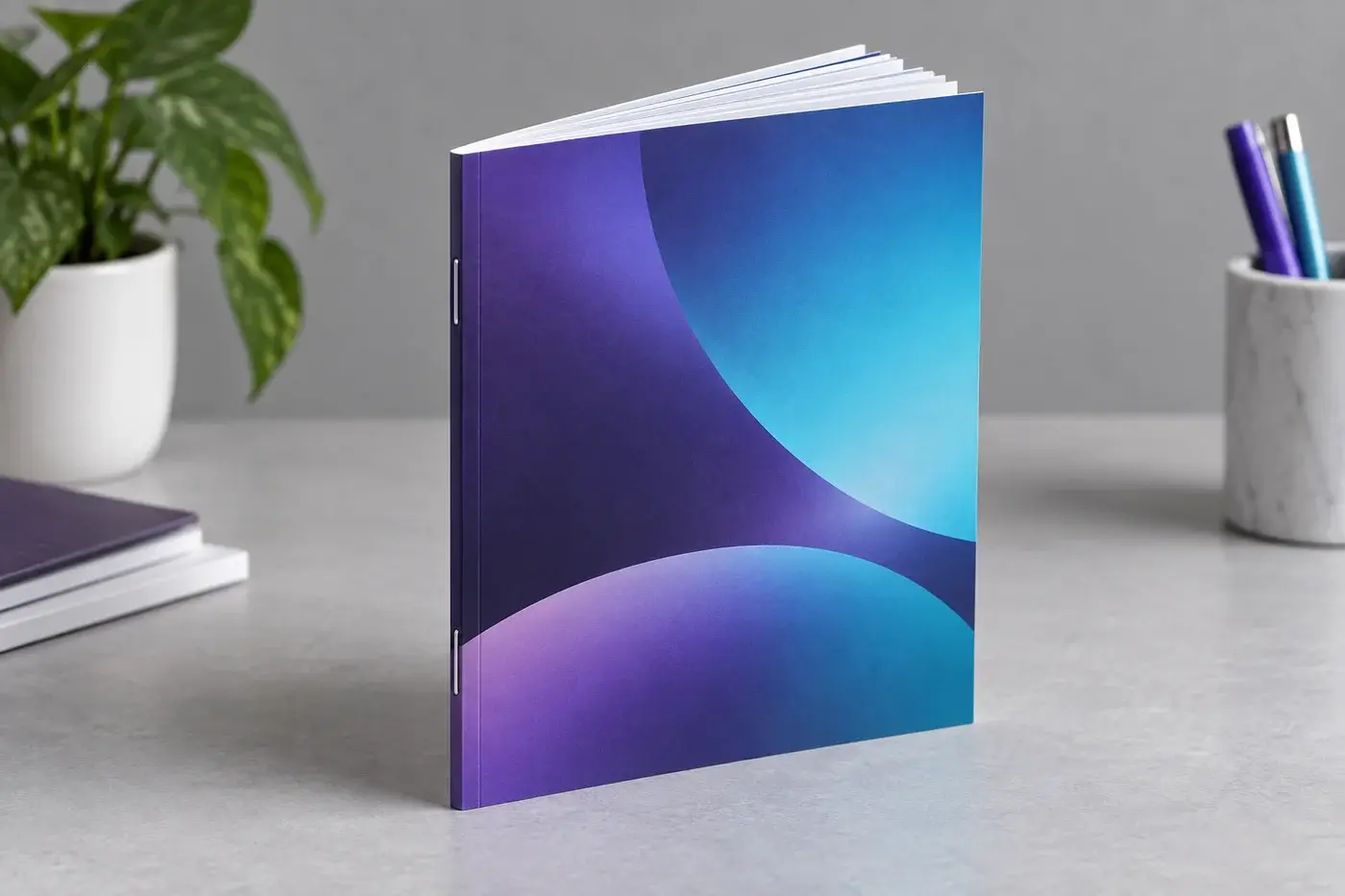

The manufacturer lists squarefolding and face trimming in the standard finishing module. A square spine changes the booklet's appearance, but it remains a stitched or stapled booklet rather than a perfect-bound book.
Application illustration; not a production sample.Connect the booklet maker, interfaces and press around the work you want to deliver.

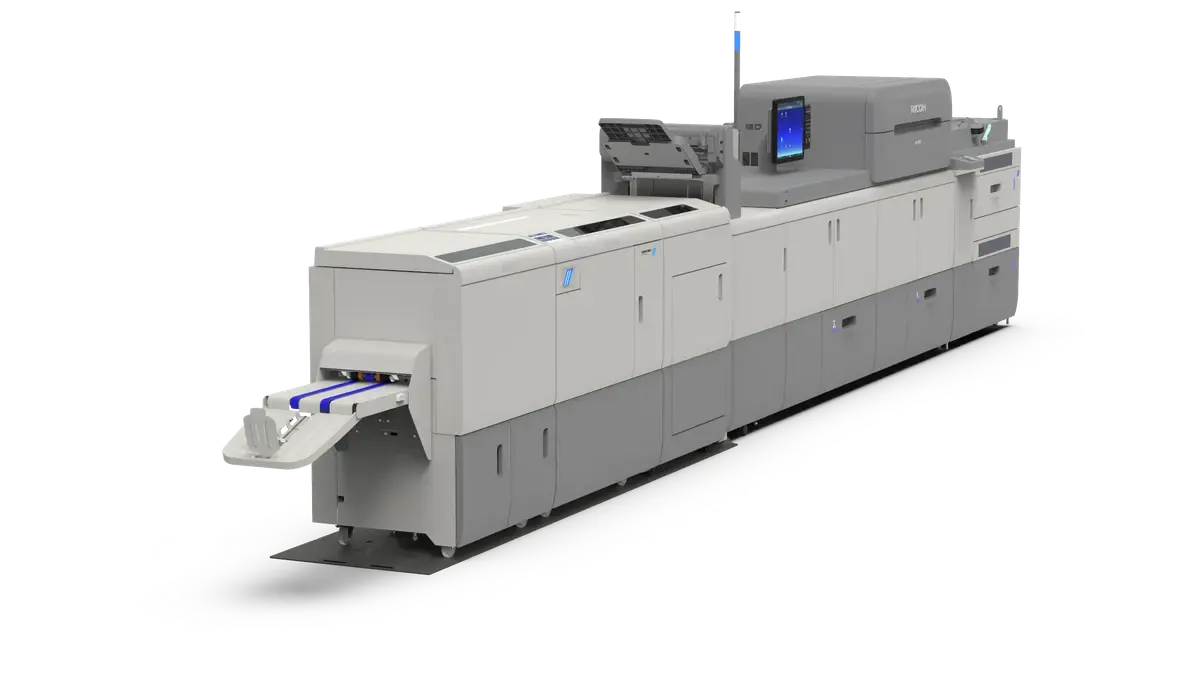

The current manufacturer page lists Pro C7500 and Pro C9500 family connectivity. Confirm the required interface, press options and exact system combination before finalising the layout.
Application illustration; not a production sample.
Include the real cover and text stock in a production sample. Check trim, fold, spine, page order and staple placement at the planned thickness—not just an empty-paper demonstration.
Application illustration; not a production sample.Select a model, then open the specification groups to compare speed, media handling and equipment options.
