Transitioning to the cloud
Ricoh cloud software solutions are readily available and easy to integrate with your existing IT infrastructure, allowing you to enhance the capabilities of the IM C2010AEX.
A3 colour multifunction printer

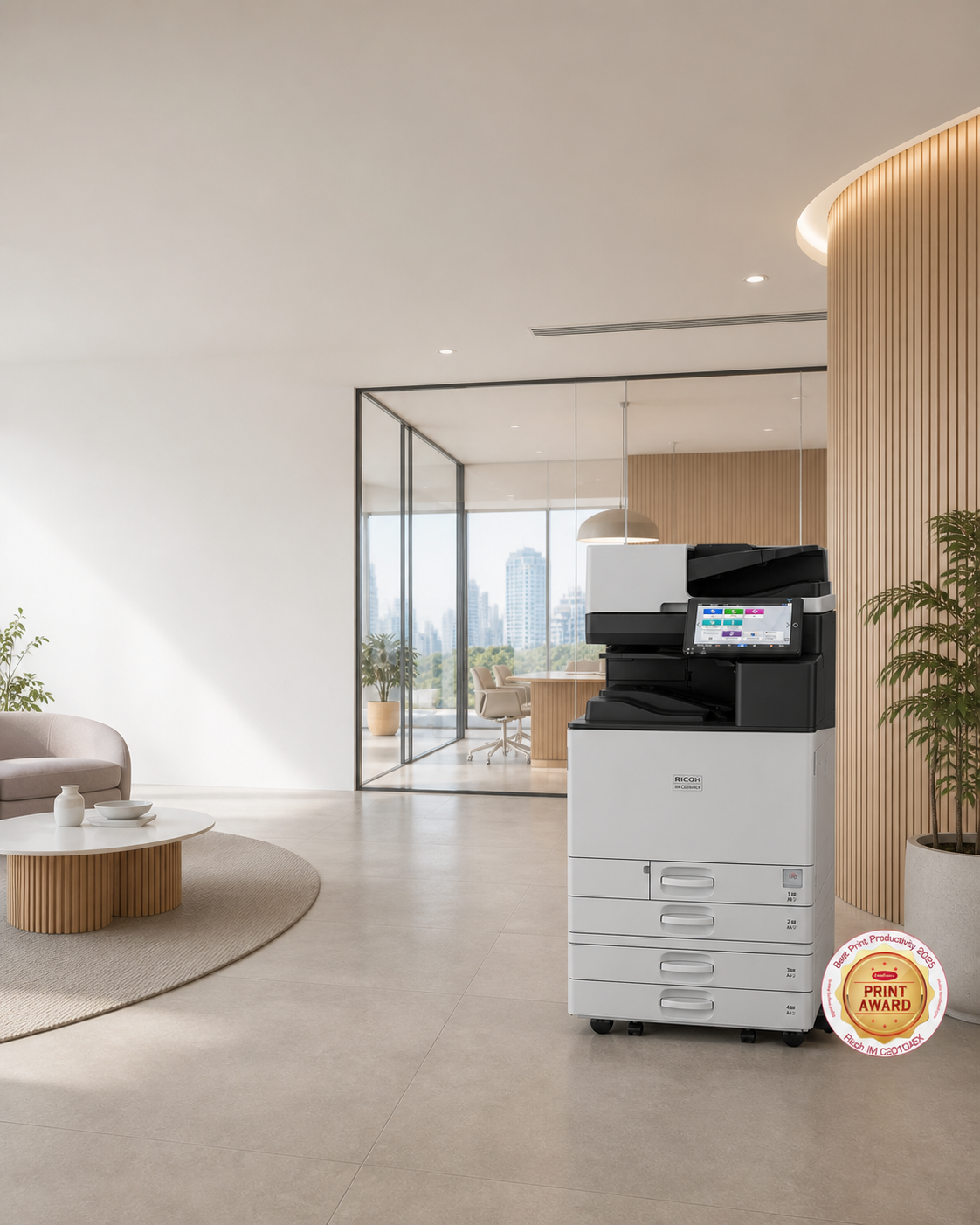

Ricoh IM C2010AEX
Accessible A3 colour capability for growing teams
At 20 ppm, the IM C2010AEX combines accessible A3 colour with an updated Single Pass Document Feeder for faster scanning and wider original handling, including business cards and cheques. Its improved operation panel, cloud options and updateable platform give growing teams room to adapt.
- Copy, print, scan, optional fax
- Prints up to 20 ppm
- Updated SPDF for faster scanning
- Robust security
output
Colour
paper size
A3
device type
Multifunction
print speed
20 ppm
best suited to
accessible A3 colour that can grow with you
02
Keep your device current
Update your device as your business expands by downloading the latest features, upgrades, and applications as you need them.
03
More energy savings
A host of enhanced energy saving features, such as a new low-melt toner and lower fusing temperature, help to make the IM C2010AEX one of the most energy-efficient devices around.
04
Reliable security
Rely on the latest security features to protect your business critical documents and data.
the ion difference
the machine is only one part of the solution
We help match the device to your actual print volumes, workflows and security needs, then support it with proactive service, automatic toner fulfilment and one local point of contact.
product guide
review the detailed brochure
Review configuration options and feature details relevant to the Ricoh IM C2010AEX.
download brochuretechnical detail
specifications
The full specification set is included on the page so your team can compare devices without searching through separate documents.
Configuration+
- Functions
- Copy, print, scan, optional fax
- Colour
- Yes
- Storage
- 256 GB SSD
- Memory - standard
- 6 GB—2 GB mainframe + 4 GB Smart Operation Panel
- Operation panel
- 10.1" Smart Operation Panel
Physical dimensions+
- Physical dimensions (WxDxH)—mainframe
- 587 x 701 x 963 mm
- Weight—mainframe
- 96.1 kg
Media handling+
- Standard input capacity (sheets)
- 1,200
- Maximum input capacity (sheets)
- 2,300
- Standard output capacity (sheets)
- 500 250—B4 or larger
- Maximum output capacity (sheets)
- 1,625
- Paper input configuration - standard
- 2 x 550-sheet paper trays, 100-sheet bypass tray, 220-sheet SPDF, duplex unit
- Paper output configuration - standard
- 500-sheet face-down internal output tray
- Supported media
- Tray 1 Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high gloss coated paper, coated paper Tray 2 Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high gloss coated paper, coated paper, envelope Optional trays Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high-gloss coated paper, envelope, coated paper Bypass tray Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high-gloss coated paper, envelope, coated paper, label paper
- Maximum paper size
- SRA3
- Media weight (g/m2)
- 52–300
Connectivity+
- Interfaces - standard
- Mainframe 10Base-T/100Base-Tx (Ethernet) 1000Base-T (Gigabit Ethernet) USB Host Type A—2 ports USB Type B—1 port Smart Operation Panel Bluetooth 5.21 USB Host Type A—USB Flash memory USB Host Type A—optional 1 port for USB keyboard 1—Cannot be used for printing
- Interfaces - optional
- IEEE 802.11 a/b/g/n/ac Interface Unit Type M52 Device Server Option Type M52 (additional Ethernet/Gigabit Ethernet port)
- Network protocols - standard
- TCP/IP (IPv4, IPv6)
Copy features+
- Copy speed
- 20 cpm
- First copy time
- 5.1 seconds—black and white 7.4 seconds—colour
- Copy resolution
- 100, 200, 300, 400, 600 dpi—scanning 1,200 x 1,200 dpi (maximum)—printing
- Zoom range
- 25%–400% in 1% steps
- Enlargement ratios
- 115%, 122%, 141%, 200%, 400%
- Reduction ratios
- 93%, 87%, 82%, 71%, 61%, 50%, 25%
- Duplex copy
- Simplex to duplex, duplex to duplex—with ARDF, book to duplex, front and back to duplex
- Book copy
- Booklet, magazine, layout and booklet
Print features+
- Print speed colour
- 20 ppm
- Print speed black and white
- 20 ppm
- First print time
- 4.5 seconds black and white, 7.0 seconds colour
- Print resolution
- 1,200 x 1,200 dpi / 4,800 x 1,200 dpi equivalent (maximum)
- Page description languages (PDLs)
- Standard PCL 5c, PCL 6, PostScript 3 emulation, PDF Direct emulation Optional Genuine Adobe PostScript 3, PDF Direct from Adobe
- Printer drivers
- Standard PCL 5c, PCL 6, PostScript 3 emulation Optional Genuine Adobe PostScript 3
- Duplex printing
- Standard
- Mobile printing
- Yes
Scan features+
- Scan speed
- Via SPDF 150 ppm—simplex, 200 x 200 dpi 120 ppm—simplex, 300 x 300 dpi 300 ppm—duplex, 200 x 200 dpi 220 ppm—duplex, 300 x 300 dpi
- Scan methods
- Scan to USB, Scan to email, Scan to folder, Scan to URL, Scan to SMB, Scan to FTP, Scan to PDF/A, Scan to digitally signed PDF, Scan to searchable PDF Note: Optional OCR unit is required to support scanning to a searchable PDF.
- Colour scanning
- Standard
- Scan resolution
- 100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi, 1,200 dpi Note: 1,200 dpi scanning is supported only with A5 or smaller paper size.
- Scan to file types
- Single- and multi-page TIFF Single-page JPEG Single- and multi-page PDF, PDF/A Single- and multi-page high-compression PDF
- Scan to email
- Protocols SMTP gateway, TCP/IP, POP, IMAP 4 Authentication SMTP authentication, POP before SMTP authentication Scan resolution 100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi Scan to email file types Single-page TIFF, JPEG, PDF, PDF/A, high-compression PDF, encrypted PDF, searchable PDF Multi-page TIFF, PDF (default), PDF/A, high-compression PDF, encrypted PDF, searchable PDF Note: Optional OCR unit is required to support scanning to a searchable PDF.
- Scan to folder
- Protocols SMB, FTP Resolution 100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi Search for client folders SMB—browsing directly to the designated folder FTP—by folder name Scan to folder file types Single-page TIFF, JPEG, PDF, PDF/A, high-compression PDF, encrypted PDF, searchable PDF Multi-page TIFF, PDF (default), PDF/A, high-compression PDF, encrypted PDF, searchable PDF Note: Optional OCR unit is required to support scanning to a searchable PDF.
- TWAIN scanning
- Scan mode Standard, Photo, OCR, Filing Note: Optional OCR unit required for OCR scanning. Scan resolution 100–1,200 dpi Note: 1,200 dpi scanning is supported only with A5 or smaller paper size.
Fax features+
- Fax types
- G3 fax, Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax
- Fax circuit
- PSTN, PBX
- Fax compatibilty
- ITU-T (CCITT), G3—maximum 3 lines
- Fax modem speed
- 2,400 bps–33.6 Kbps—G3, standard with automatic shift down
- Fax compression methods
- MH, MR, MMR, JBIG
- Fax resolution
- Standard mode 200 x 100 dpi—8 x 3.85 lines/mm Detail mode 200 x 200 dpi—8 x 7.7 lines/mm Super Fine mode 400 x 400 dpi—8 x 15.4 lines/mm 400 x 400 dpi—16 x 15.4 lines/mm Note: Super Fine mode is supported with the optional SAF memory.
- G3 fax transmission speed
- 3 seconds approximately—JBIG, ITU-T No. 1 chart, TTI off, memory transmission 3 seconds approximately—MMR, ITU-T No. 1 chart, TTI off, memory transmission
- Fax SAF memory capacity
- Standard 4 MB—approximately 320 pages With optional SAF memory 60 MB—approximately 4,800 pages
- Fax memory backup
- 1 hour
- Quick dials
- 2,000 numbers
Security features+
- Encryption
- SSD, PDF, Secure print, WEP, WPA Authentication password Encryption of data sent via Scan to email and Fax forwarding (S/MIME)
- Authentication
- 802.1x wired authentication Administrator authentication IEEE 802.11i security (WPA3) IPv6 Quota setting User authentication—Windows and LDAP via Kerberos, basic, user code WiFi Protected Setup (WPS) support
Supported operating environments+
- Windows
- PCL 5c, PCL 6, and PostScript 3 Windows 8.1 Windows 10 Windows Server 2012 Windows Server 2012 R2 Windows Server 2016 Windows Server 2019 Windows Server 2022
- Macintosh
- MacOS v10.15 or later—PostScript 3 only
- Unix
- PCL 5c, PostScript 3 Sun Solaris, HP-UX, SCO OpenServer, Red Hat Linux, IBM AIX
- SAP
- PCL 5c R/3, S/4
Software and solutions+
- Standard
- @Remote Embedded Web Image Monitor
- Optional
- Streamline NX V3 GlobalScan NX Enhanced Locked Print NX Card Authentication Package
- Mobile apps
- RICOH Smart Device Connector
Environmental features+
- Power source
- 220–240 V, 50/60 Hz—Asia Pacific 110 V, 60 Hz—Taiwan
- Power consumption
- 1,700 W or less—maximum power, Asia Pacific 1,584 W or less—maximum power, Taiwan 411.8 W—operating power, black and white 465.3 W—operating power, colour 37.7 W—Ready Mode 0.3 W—Energy Saver Mode (Sleep Mode)
- Typical Electricity Consumption (TEC)
- 0.20 kWh
- Warm-up time
- 24 seconds
- Recovery time
- From Energy Saver Mode 6.6 seconds
- Green labels
- The Thai Green Label Scheme
- Other environmental features
- Eco-friendly indicator, Energy Saver Timer, System Reset Timer
Specifications are based on current Ricoh Australia product information and may change. Optional features can require additional hardware, software or configuration.
compare nearby models
related ricoh devices
common questions
about theIM C2010AEX
Quick answers about the device, where it fits and how ion can support it.
ColourA3Multifunction20 ppm
What type of device is the IM C2010AEX?+
The IM C2010AEX is an A3 colour multifunction device that prints at up to 20 pages per minute. Its core functions are copy, print, scan, optional fax.
Who is the IM C2010AEX best suited to?+
Small and growing teams that need A3 printing, copying and scanning in one supported device, especially where accessible A3 colour capability for growing teams matters.
Can ion supply and support the IM C2010AEX?+
ion can assess your print volumes, workflows and security needs, configure the right IM C2010AEX solution, and support it through a managed print arrangement with local service and automatic toner fulfilment.
